Product Description
Oil Change System Kit 24v - 17820-0024

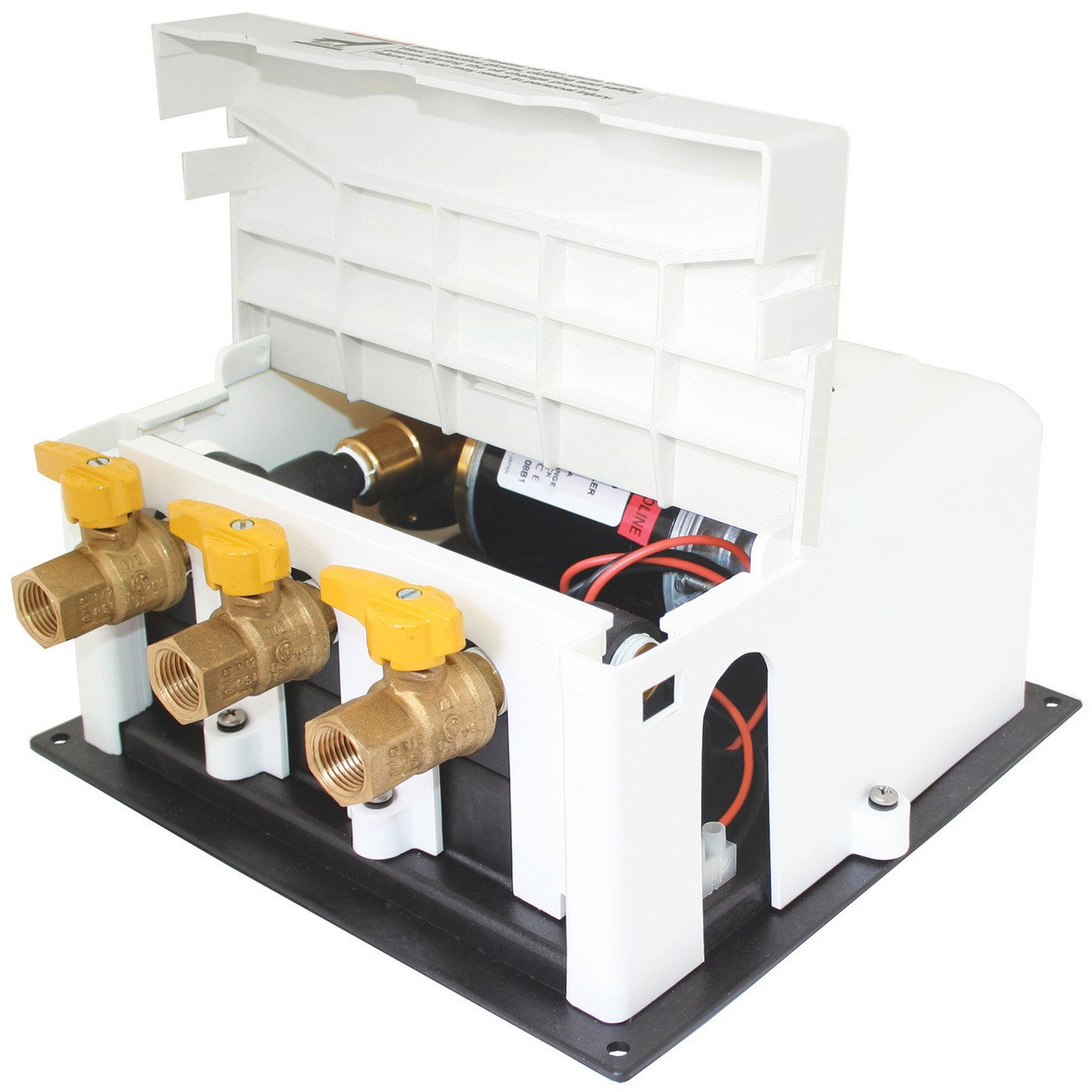

A completely self contained permanently mounted kit to change engine and transmission oil on board. The Jabsco oil change system consists of a robust self priming flexible impeller pump mounted to an easy to install base with cover and coupled to a five port manifold, factory fitted with 3 x 12mm full flow ball valves.
The system should be installed in the vessels engine room permanently plumbed to the engines oil pans or transmission oil sump. The five port manifold allows an additional two ball valves to be fitted, if required, to drain up to five oil reservoirs. The system can then be used to remove the old oil and then by using the integral reversing switch, pump a measured amount of new oil back into the engine or transmission.
Total size: 276mm length x 260mm width x 159mm height.
