Product Description

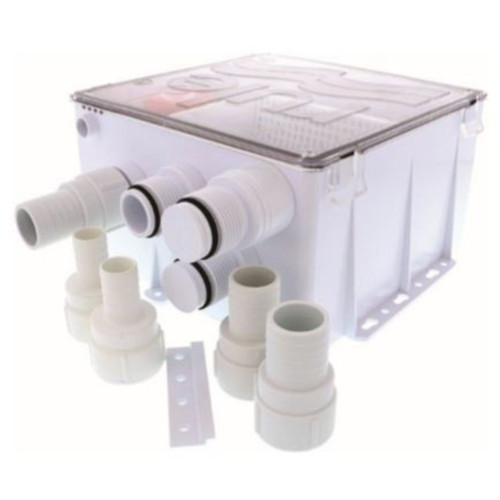

Rule Shower Sump Drain Kit 24v 800GPH
**NEW MODEL**
They feature threaded inlet & discharge ports for ease of installation and snap-in components for ease of replacement. The shower drain box is easy to install, has a removeable filter for cleaning, a sealed clip-on lid to prevent unwanted water splash and is fully serviceable without any need for tools. Compact, full capacity automatic shower sump draining kits that turn on and shut off automatically as required.
These kits feature:
- Powerful Rule 800 GPH (50 LPM) pump
- Rule-A-Matic float switch to automate the pump system
- Sealed polycarbonate snap-on lid (can also be screwed down)
- Fast fix system - pump & float switch snap out of housing
- Threaded port fittings for ease and variety of installation needs
- Compact one way check valve to prevent back siphoning
- Removable wide screen filter to trap debris
- 4 x inlet port options (2 blanked off) with screw-on ports provided
Box size: 130mm height 240mm width x 230mm length
75mm additional to the length for the inlet ports & screw-on port fittings
1 x 20mm (3/4") screw-on discharge port
3 x screw-on inlet port options (2 come blanked off)
1 x 38mm fixed hose port
Screw-on Inlet ports provided - 2 x 20mm, 1 x 25mm & 1 x 28mm.
1.5amp @12v, 2.2amp @27v
