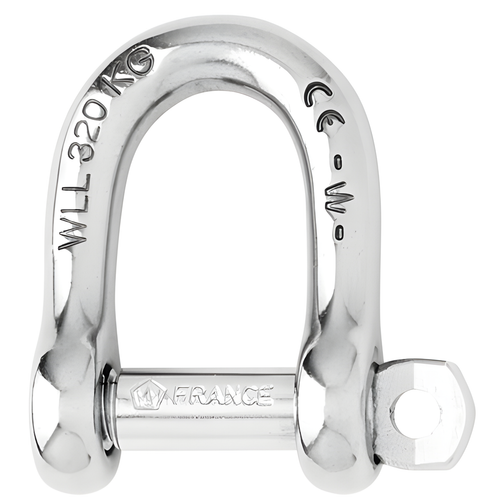

Wichard Self-Locking D Shackle – 316L Stainless Steel
Forged from marine-grade 316L stainless steel, the self-locking D shackle features a pin that locks into one of the indentations, eliminating the risk of loosening due to vibrations. With outstanding working and breaking loads, it is suitable for industrial lifting applications (WLL) as well as standard marine rigging and attachment tasks. CE-marked for safety and reliability.
Technical Specifications – All Variants
| Part # | D Ø (mm) | Working Load (kg) | WLL (kg) | Breaking Load (kg) | Weight (g) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| w1201 (4mm) | 4 | 320 | 140 | 700 | 7 | 13 | 8 | 4 | 8 | 3 | 23 | 20 |
| w1202 (5mm) | 5 | 400 | 200 | 1,000 | 13 | 16 | 10 | 5 | 10 | 4 | 29 | 26 |
| w1203 (6mm) | 6 | 600 | 320 | 1,600 | 22 | 20 | 12 | 6 | 12 | 5 | 34 | 31 |
| w1204 (8mm) | 8 | 1,000 | 540 | 2,700 | 55 | 26 | 16 | 8 | 16 | 7 | 45 | 41 |
Notes
-
Material: 316L stainless steel
-
Self-locking pin prevents accidental loosening due to vibration
-
WLL (Working Load Limit) suitable for industrial applications
-
CE marked
-
Applications: lifting, marine rigging, blocks, head attachments
