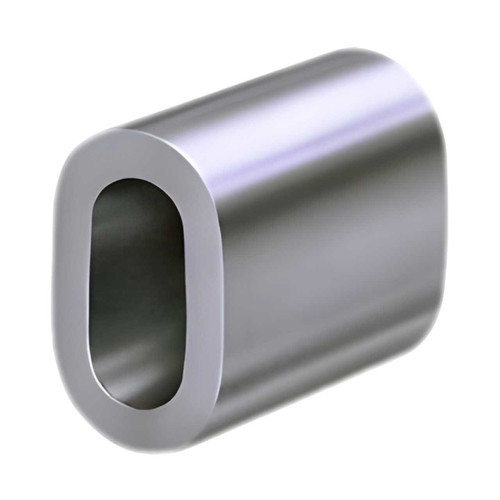

Talurit T, TK, TKH Aluminium Ferrules – Wire Rope Swaging End Stops
Talurit Aluminium Ferrules (T, TK, TKH series) are high-quality, precision-engineered end stops designed for secure swaging onto wire ropes using approved hydraulic or mechanical swaging equipment. Manufactured from durable aluminium, these ferrules deliver consistent deformation, reliable retention, and excellent corrosion resistance, making them ideal for non-lifting applications in marine, industrial, and architectural rigging.
These ferrules are compatible with both fibre core and steel core wire ropes, ensuring secure terminations when swaged with the correct die and pressure.
Wire Rope Capacity – Diameter (mm)
Case 1
-
Fill Factor: 0.36 ≤ f ≤ 0.45
-
C Value: 0.283 ≤ C ≤ 0.353
-
Wire Rope Diameter: 3.8 – 4.3 mm
Case 2
-
Fill Factor: f ≤ 0.62
-
C Value: C ≤ 0.487
-
Wire Rope Diameter: 3.3 – 3.7 mm
Swaging & Die Specifications
-
Die Identification: 4
-
Diameter After Pressing: 8 mm
-
Length After Pressing: Approx. 18 mm
-
Required Swaging Pressure (approx.): 80 kN
Features
-
Talurit T, TK, TKH series high-quality aluminium
-
Consistent and controlled swaging performance
-
Suitable for fibre core and steel core wire ropes
-
Corrosion-resistant for marine and outdoor environments
-
Ideal for general-purpose wire rope terminations (non-lifting)
Applications
-
Marine rigging and standing rigging
-
Safety and restraint systems
-
Architectural cable installations
-
Industrial wire rope assemblies
-
Non-lifting load-bearing terminations
Important Safety & Application Notice
End stops (R, RCU, and Talurit ferrules) are not permitted for lifting applications.
The expected strength of this end termination is approximately 50% of the wire rope Minimum Breaking Load (MBL). This is informative only and must not be treated as guaranteed working load.
Verification testing is required to confirm the actual strength and suitability for the intended application. Final responsibility for correct selection, installation, and testing rests with the installer or system designer.
