Product Description

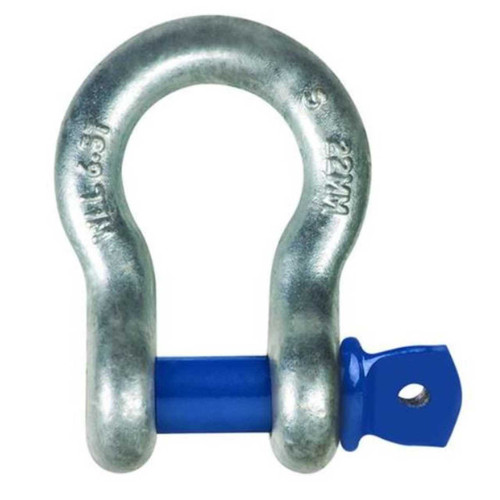

Shackle Bow Rated 8mm
Overview: This Bow Shackle is designed for heavy-duty applications, making it an ideal choice for trailers, off-road vehicles, and 4WDs. Manufactured from forged steel and hot-dipped galvanized for enhanced corrosion resistance, this shackle ensures reliable performance in demanding conditions.
Key Features:
-
Shackle Type: Bow
-
Shackle Size Code: 5/16”
-
Bail Diameter: 8mm
-
Pin Diameter: 10mm
-
Working Load Limit: 750 kg, ensuring safe operation within specified limits.
-
Breaking Load: 4500 kg, providing a robust safety margin for demanding tasks.
-
Durable Construction: Made from forged steel and finished with hot-dipped galvanization, this shackle is built to withstand harsh environments and resist corrosion.
-
Safety Factor: Rated at 6x, meaning it incorporates a built-in safety factor of 6:1, ensuring reliability during use.
-
Clear Markings: The working load limit is stamped into the body of each shackle for easy reference, promoting safe usage.
-
Larger Pin Diameter: Designed with a larger pin diameter than the bail diameter for enhanced strength and durability.
-
CE Marking: Each shackle is stamped with a CE mark, indicating compliance with European safety standards.
