Product Description

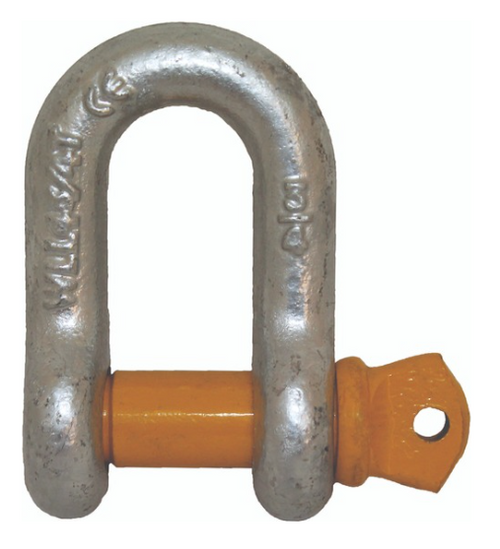

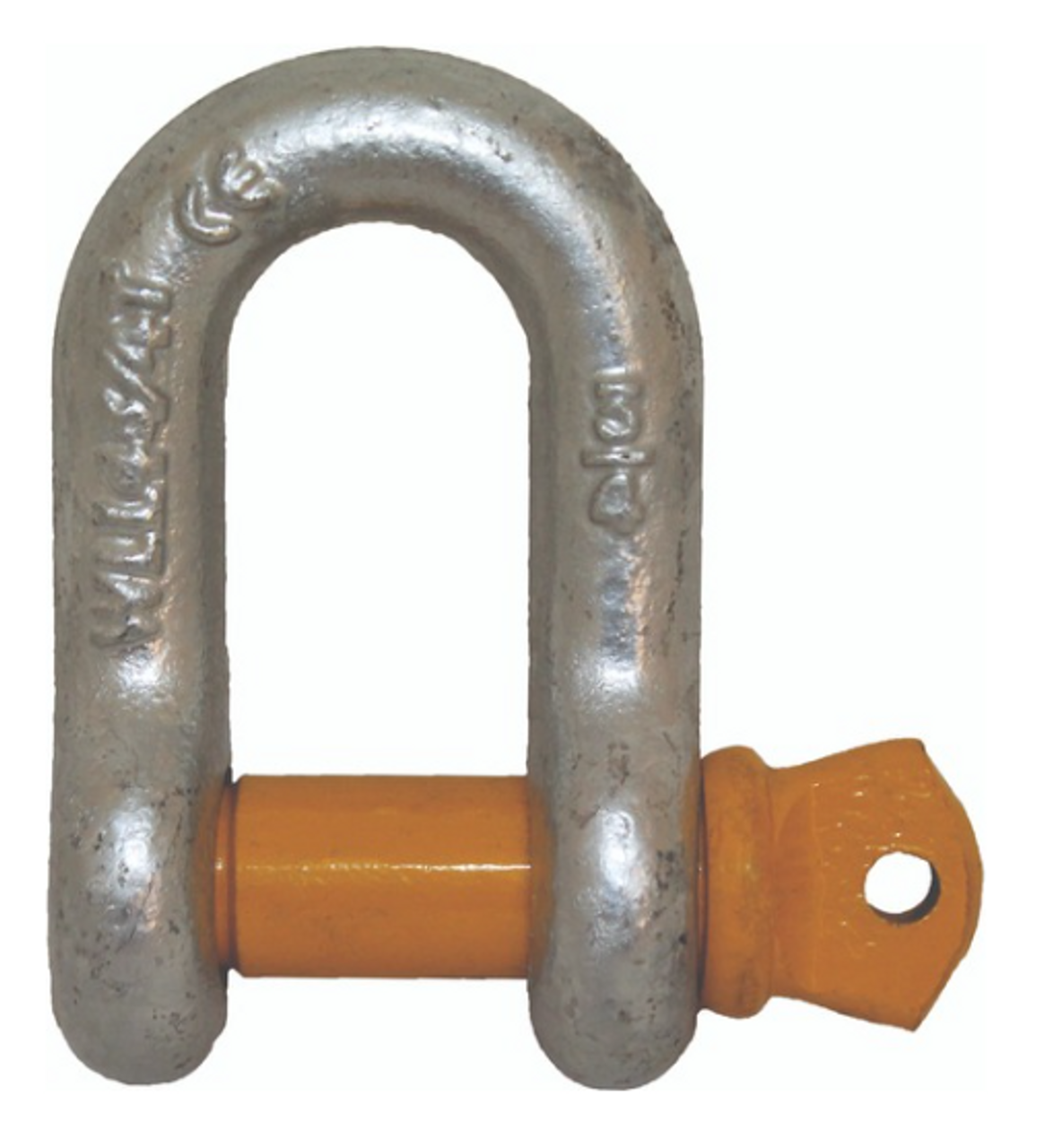

1/4” Dee Shackle – 500kg WLL | Galvanised with Yellow Pin
This compact yet strong 1/4-inch Dee Shackle is ideal for light-duty applications in marine, trailer, and 4WD use. Manufactured from forged steel and finished with a hot-dipped galvanised coating, it provides long-lasting corrosion resistance and strength in harsh environments.
With a bail diameter of 6mm and a pin diameter of 8mm, this shackle features a yellow safety pin for quick visual identification and is 6x rated, delivering a working load limit of 500kg and a breaking load of 3,000kg. The CE mark and WLL stamping on each unit confirm its compliance and reliability in load-bearing tasks.
Specifications:
-
Shackle Type: Dee
-
Shackle Size Code: 1/4"
-
Bail Diameter: 6mm
-
Pin Diameter: 8mm
-
Working Load Limit (WLL): 500kg
-
Breaking Load: 3,000kg
-
Material: Forged steel, hot-dip galvanised
-
Pin: Yellow powder-coated pin
-
Safety Factor: 6:1 (WLL to breaking load)
-
Certification: CE marked & load-rated
Ideal For:
-
Light-duty trailer connections
-
Small-scale marine applications
-
4WD accessories
-
DIY rigging and tie-down setups
Always match your shackle’s WLL to the load and inspect before each use to ensure safety and performance.
