Product Description

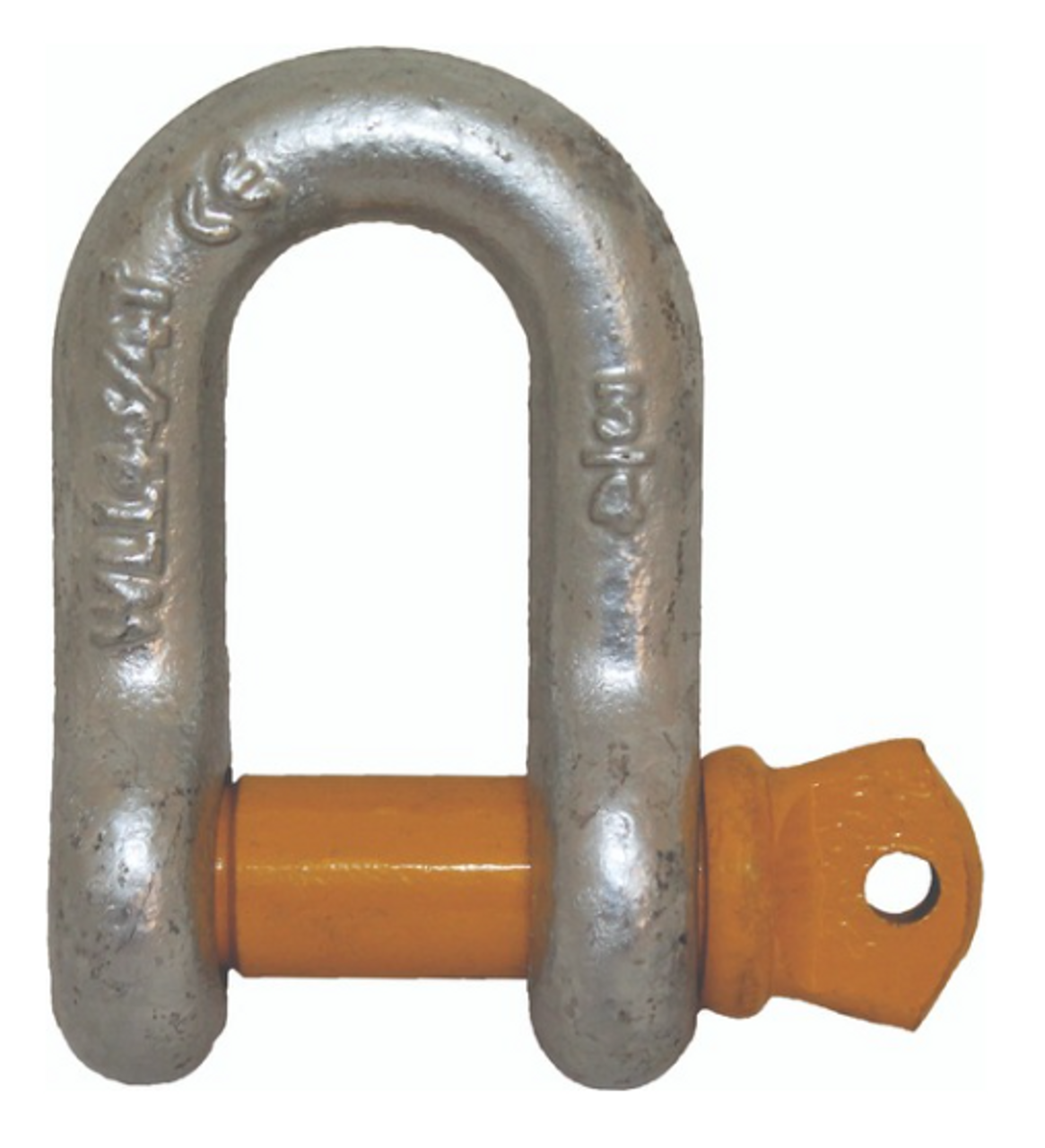

1” Dee Shackle – 8500kg WLL | Galvanised with Yellow Pin
This heavy-duty 1-inch Dee Shackle is designed for secure load handling in the toughest conditions. Made from forged steel and finished in hot-dip galvanising for maximum corrosion resistance, it's ideal for trailers, off-road vehicles, 4WD recovery, industrial rigging, and marine applications.
With a bail diameter of 25mm and a pin diameter of 28mm, this shackle features a distinctive yellow safety pin and is 6x rated – delivering a massive Working Load Limit (WLL) of 8500kg and a breaking load of 51,000kg.
Each shackle is stamped with its WLL rating and CE mark, ensuring confidence in compliance and safety. Built with a larger pin than the bail for added strength, and precision-engineered to meet demanding conditions.
Key Specifications:
-
Shackle Type: Dee
-
Shackle Size Code: 1"
-
Bail Diameter: 25mm
-
Pin Diameter: 28mm
-
Working Load Limit (WLL): 8500kg
-
Breaking Load: 51,000kg
-
Material: Forged steel, hot-dip galvanised
-
Pin: Yellow powder-coated safety pin
-
Safety Factor: 6:1 ratio (WLL to breaking load)
-
Certification: CE Marked
Applications:
-
Trailer and towing setups
-
4WD and off-road vehicle recovery
-
Industrial rigging and load restraint
-
Marine mooring and anchoring systems
Use only shackles with WLL appropriate for your task. Always inspect prior to use and avoid overloading.
