Product Description

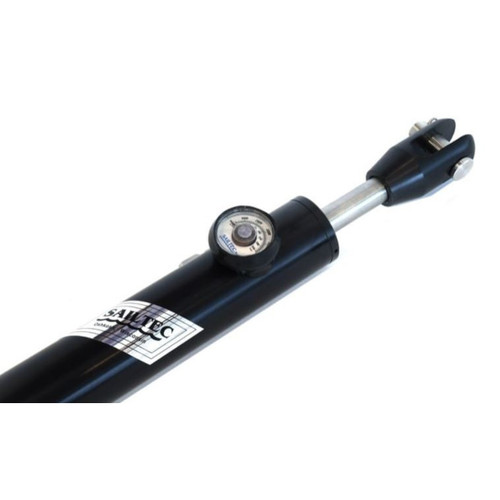

Hydraulic Ram 12" Standard
SAILTEC was one of the first companies to combine a hydraulic cylinder with a small hydraulic pump commonly known as an Integral.
For almost 30 years SAILTEC has manufactured and improved the Integral. This proven Integral hydraulic adjuster now features a low profile hydraulic pressure gauge mounted at top of cylinder tube. The top mount location allows easier gauge reading and low profile provides secure and snag-free operation.
SAILTEC has also modified the design of the pump lever and handle on the integral adjuster. This new design provides a more compact dimension to the integral assembly and enhances product appearance with 316 stainless steel handle and new textured all-weather handgrip (Kung Foo Grip).
Larger diameter piston rod
- Resists side load deflection
- Distributes seal contact for longer life
Double Rod Seals Guides
- Clean, scrape and seal piston rod for longer, leak free service life
- Sizes from -08 to -30 are produced and stocked in various stroke lengths: 226mm/8.9” to 421mm/16.5”
- 250 MM (9.8” – 10.5”) are specifically made to replace older Navtec integrals without modifying the backstay length)
- Custom lengths and strokes are common
Demand for variety
- We have never attempted cost cuts by reducing rod diameter, installing low quality seals or using inferior finishes
- Available in black hard-coat, clear anodize or T316 SS w/#4 polish.
Proven Design – available since 1983
- We have never attempted cost cuts by reducing rod diameter, installing low quality seals or using inferior finishes
- Available in black hard-coat, clear anodize or T316 SS w/#4 polish.
Specialized and Focused
- Developing and manufacturing high quality marine hydraulic systems is our sole purpose at SAILTEC.
Cylinder: 12" Standard
Model Number: 12SI
Piston Rod Size: 3/4" / 19mm
Tension: 6500lb / 2945kg
Cable/Wire Max Size: 5/16" / 8mm
Pin Diameter: 5/8" / 15.9mm
Length Closed: 24" / 609mm
Length Open: 34" / 863mm
Stroke: 10" / 254mm
