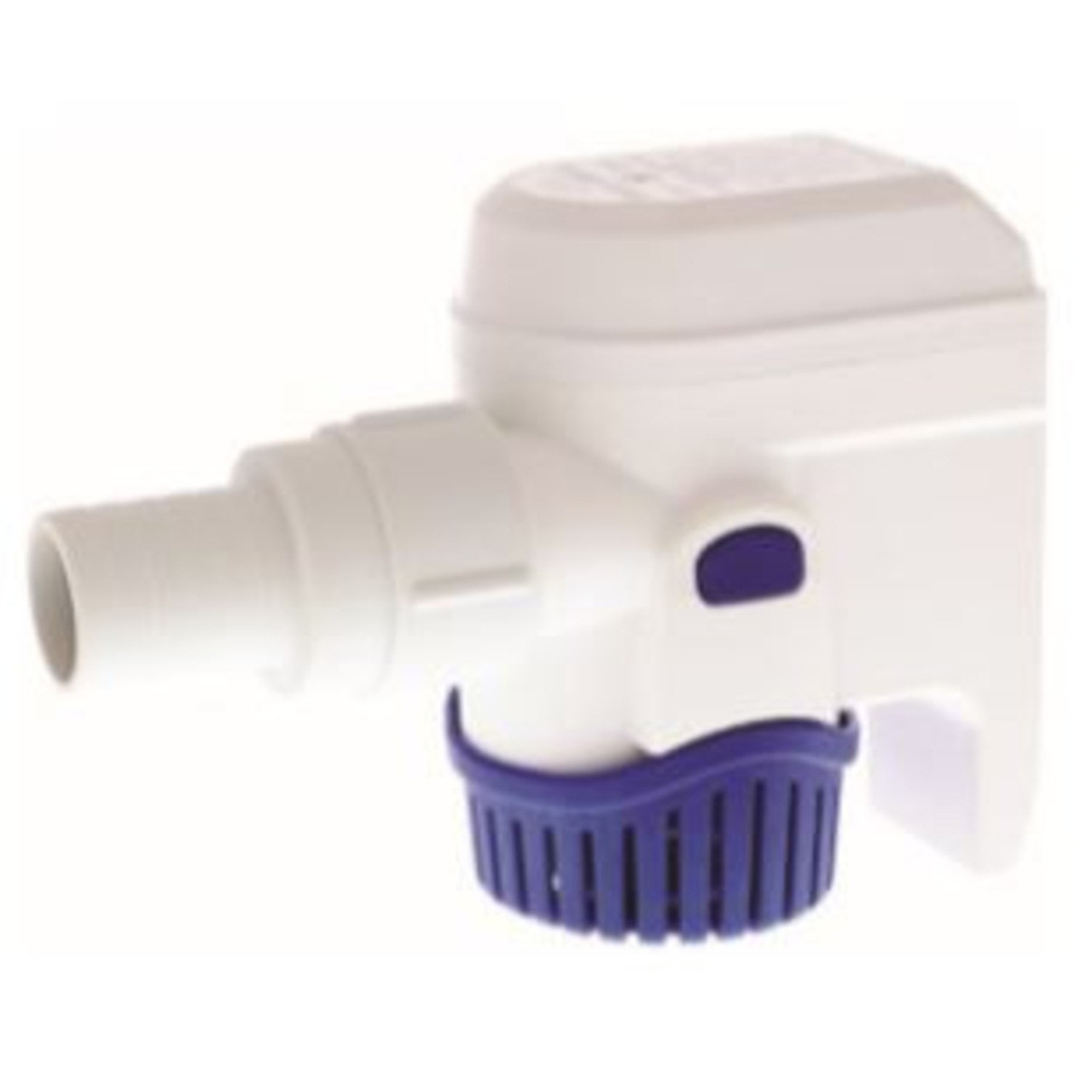

Rule-Mate Automatic 500 GPH Bilge Pump 12v

Rule-Mate Automatic 500 GPH Bilge Pump 12v

'Rule-Mate' fully automatic submersible bile pumps with Rule's exclusive spongeability feature.

All in one bilge pump and switch - no need for independent float switch.

The innovative design incorporates the bilge pump and water sensor in one single housing - save space!

Rule's unique spongeability feature leaves the bilge drier then ever. When water in the bilge reached a certain height the solid state sensor automatically activates and the pump runs until the water is pumped out, reducing boat weight, saving fuel and minimizing bilge odour.

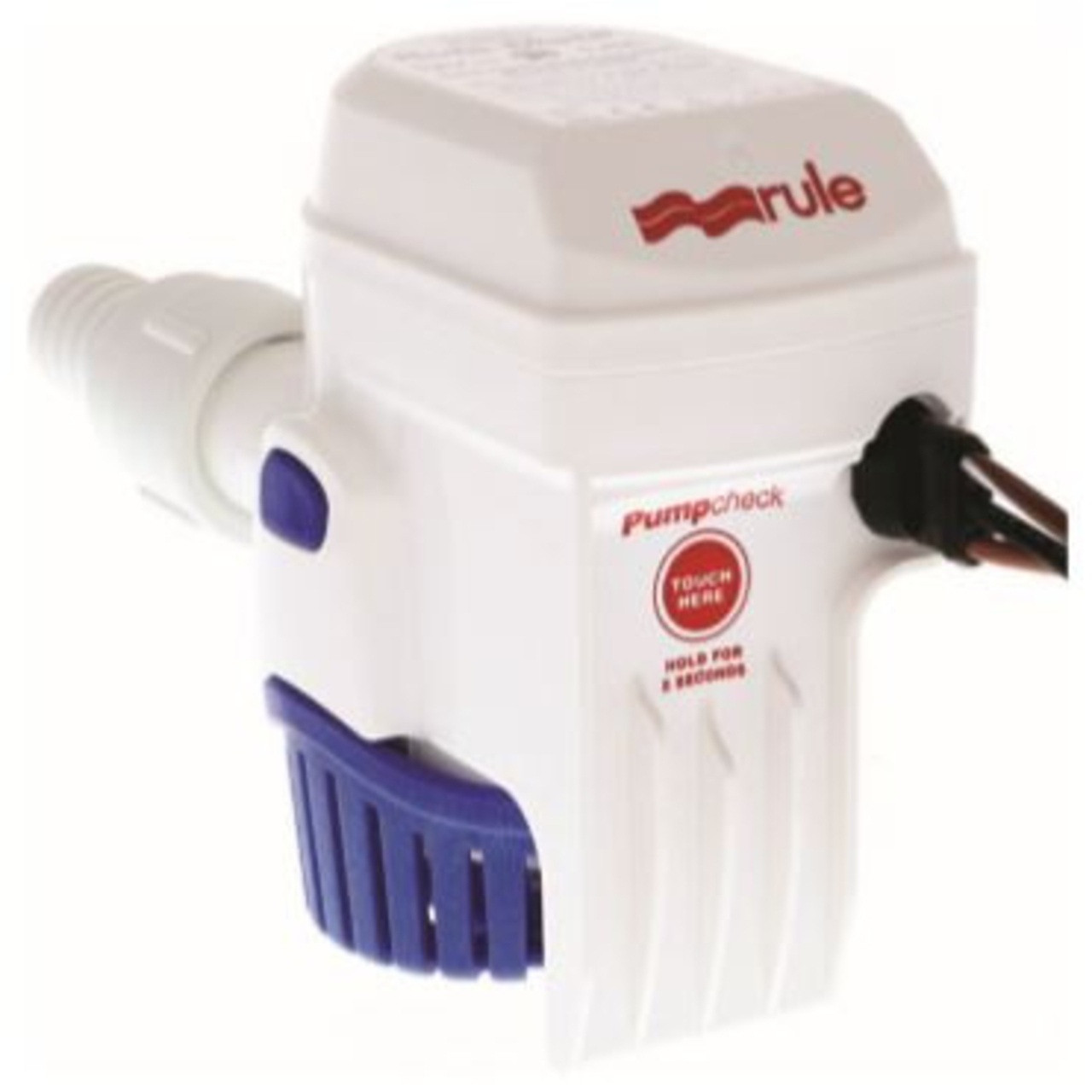

Pump check feature - simply touch the pump check button on the pump, hold for a few seconds to test cycle the pump.

Pump has a threaded discharge port with O ring seal and are supplied with both 90 degree and straight hose port - 20mm.

Available in 12 or 24 volt.

3 year limited warranty.

• Fully automatic all in one submersible bilge pump system
• 500 GPH - 31 litres per minute
• No separate float switch required
• Bilge water sensor and pump in one common housing
• Pump and sensor are internally common wired for easy installation
• No batter drain other then when pump is in use
• Removable strainer and impeller are accessible to clear debris
• Threaded discharge port for easy installation
• 1 x straight hose ports supplied with the pump
• A 3rd wire allows for manual over-ride using Rule Switch Panel RWB23 or RWB107 or it can activate a light or alarm if desired
• Thermal overload protection
• Single touch pump check test button feature
• 3 different capacities available 500 GPH, 750 GPH, 1100 GPH
• Pumps have an oval footprint 110mm x 70mm
• Overall dimensions including straight hose port 190mm Length x 80mm Wide x 115mm Height
• 1.8 amp draw @ 12v DC
• 4amp fuse

Spare Parts Available:

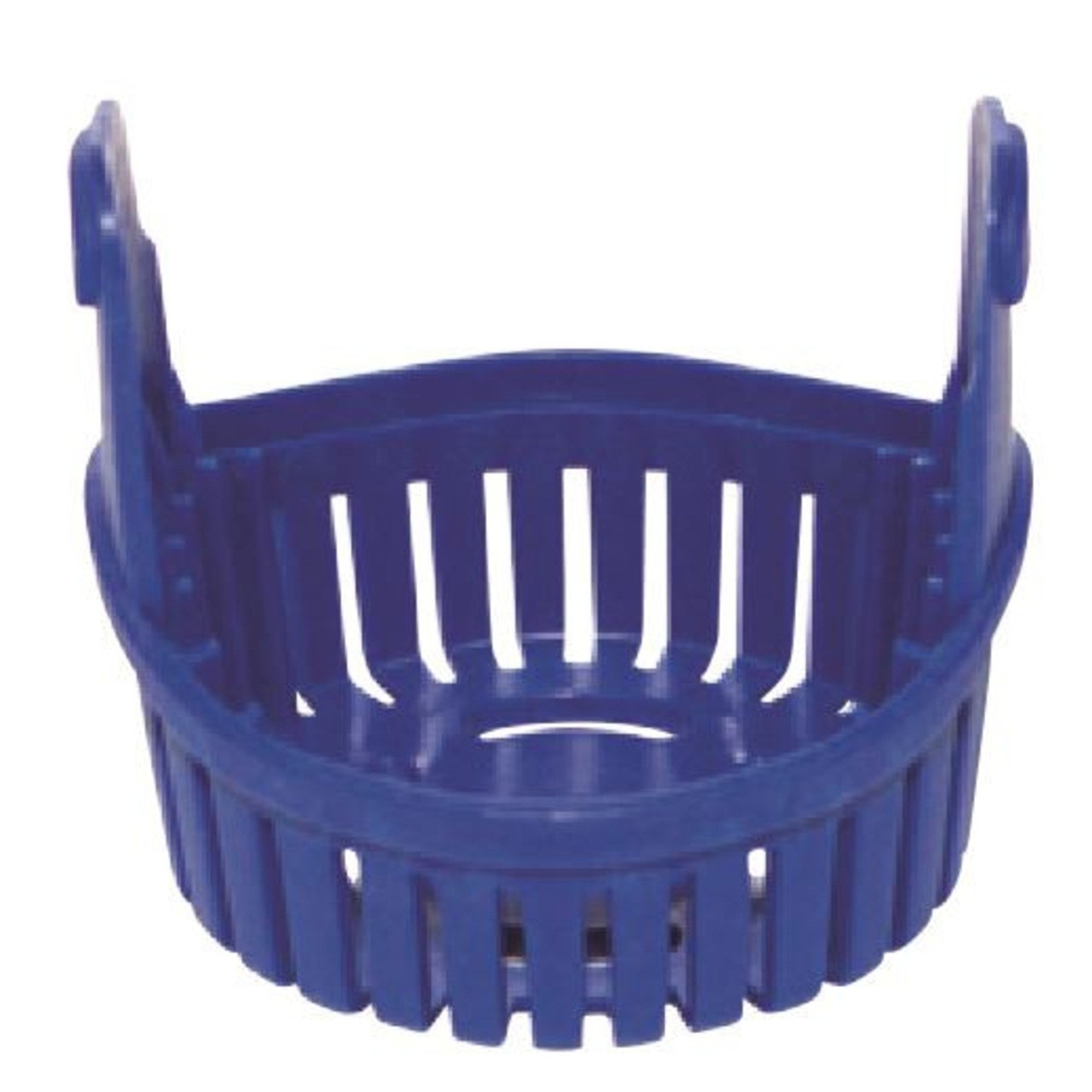

SP856 Replacement Snap-On Strainer

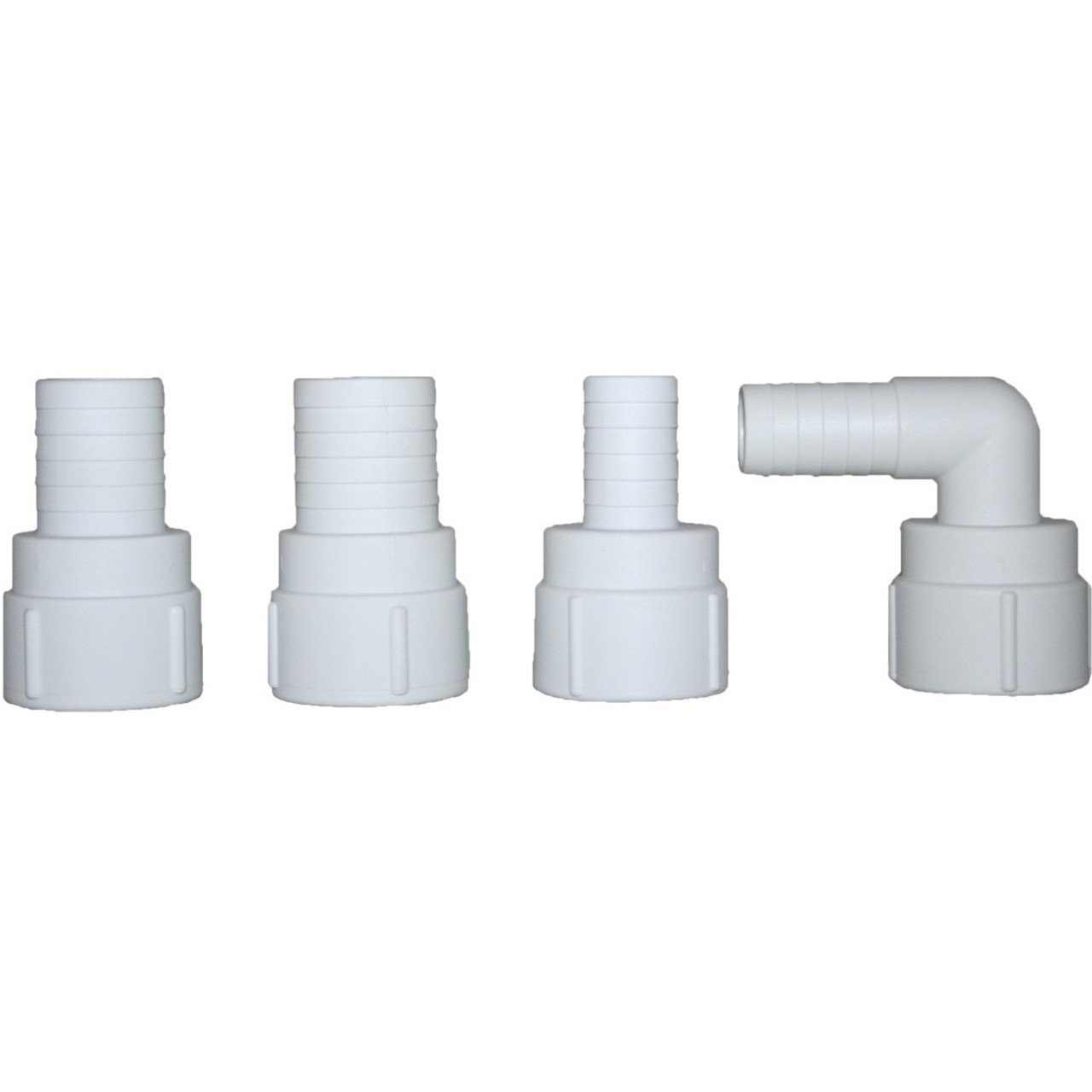

SP840 Straight threaded port suits 20mm (3/4") hose (as supplied with pump)

SP841 90 degree threaded port suits 20mm (3/4") hose

SP842 Straight threaded port suits 25mm (1") hose

SP851 Replacement check valve 20mm (3/4")
