Lalizas FOS 20 LED Navigation Lights – Vertical Mount
The Lalizas FOS 20 Series LED Navigation Lights are designed for boats up to 20 metres, offering efficient, reliable navigation lighting for a range of vessel configurations. The LED technology provides long service life and reduced power consumption compared with conventional bulb lights.
Designed for demanding marine environments, the lights feature a waterproof, non-corrosive construction and are available in black or white body options depending on the model.
All lights include 1.2m of wiring, fastening screws and a double-sided adhesive sticker that can also be used as a drilling template.
Key Features:
- Long-life LED technology
- Lower power consumption than conventional bulb lights
- Waterproof construction for marine environments
- Durable non-corrosive design
- Vertical-mount configuration
- Includes wiring, fastening screws and drilling template
- Suitable for replacement or new installations
- Available in a range of navigation configurations
Available Options:
| Part Number | Description | Colour | Power | Dimensions | Visibility |
|---|---|---|---|---|---|
| RWB8650 | Port & Starboard (Pair) | Black | 1.5W | 90 x 65 x 38mm | 2 NM |
| RWB8651 | Port & Starboard (Pair) | White | 1.5W | 90 x 65 x 38mm | 2 NM |

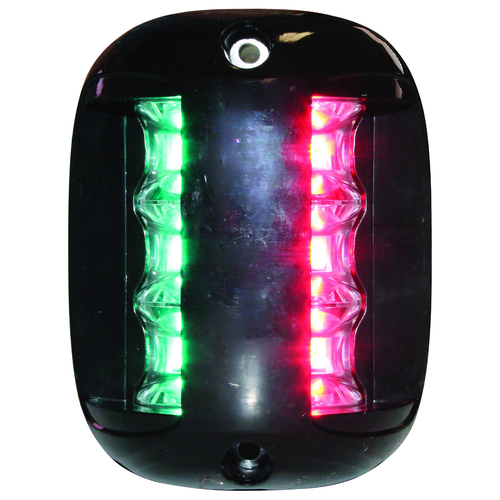

| RWB8656 | Bi-Colour – Combined Port & Starboard | Black | 3W | 104 x 77 x 45mm | 2 NM |
| RWB8652 | Stern Light – 135° | Black | 1.5W | 96 x 72 x 32mm | 2 NM |
| RWB8653 | Stern Light – 135° | White | 1.5W | 96 x 72 x 32mm | 2 NM |
| RWB8654 | Masthead Light – 225° | Black | 3W | 104 x 77 x 45mm | 2 NM |
| RWB8655 | Masthead Light – 225° | White | 3W | 104 x 77 x 45mm | 2 NM |
Please note: A white-body Bi-Colour light is not available in the FOS 20 series.
Specifications:
- Brand: Lalizas
- Series: FOS 20
- Application: Boats up to 20m
- Mounting: Vertical Mount
- Voltage: 8–30V
- System Compatibility: 12V and 24V DC
- Protection Rating: IP67
- LED Life: Up to 50,000 hours
- Power Consumption: Up to 80% lower than conventional bulb lights
- Approvals: USCG COLREG72, ABYC A-16 and EN14744
- Wiring Length: 1.2m
- Housing Colours: Black or White, depending on model
- Packaging: Clam-style blister
- Quantity: Port & Starboard supplied as a pair; other lights sold individually
