Description
Lalizas FOS 12 LED Navigation Lights – Horizontal Mount
The Lalizas FOS 12 LED Horizontal Mount Navigation Lights provide compact, energy-efficient navigation lighting for boats, with a flat base designed for installation on horizontal surfaces such as decks and cabin tops.
The range includes Port & Starboard pairs, Bi-Colour lights and Stern lights, available with black or white housings. Their low-profile design makes them suitable for marine installations where space is limited.
Key Features:
- Horizontal-mount design for decks and cabin tops
- Compact, low-profile construction
- Energy-efficient LED lighting
- Choice of black or white housing
- Available in Port & Starboard, Bi-Colour and Stern configurations
- Low power consumption for marine electrical systems
Available Options:
Black Housing
| Model | Part Number | Dimensions (H x L x W) | Visibility | Power |
|---|---|---|---|---|
| Port & Starboard Pair | RWB8637 | 40 x 56 x 36mm | 1 NM | 0.5W |
| Bi-Colour | RWB8641 | 40 x 69 x 62mm | 1 NM | 1W |

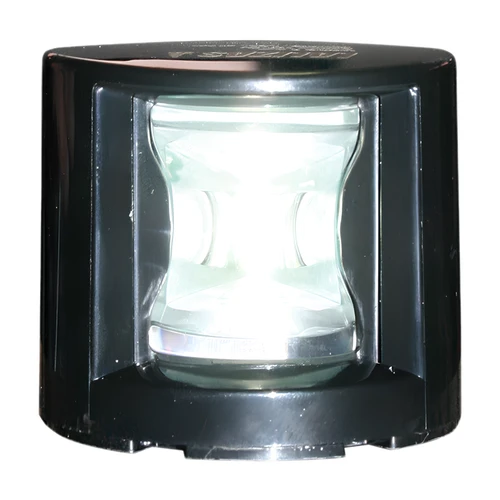

| Stern – 135° | RWB8639 | 38 x 56 x 42mm | 2 NM | 0.5W |
White Housing
| Model | Part Number | Dimensions (H x L x W) | Visibility | Power |
|---|---|---|---|---|
| Port & Starboard Pair | RWB8638 | 40 x 56 x 36mm | 1 NM | 0.5W |
| Bi-Colour | RWB8642 | 40 x 69 x 62mm | 1 NM | 1W |

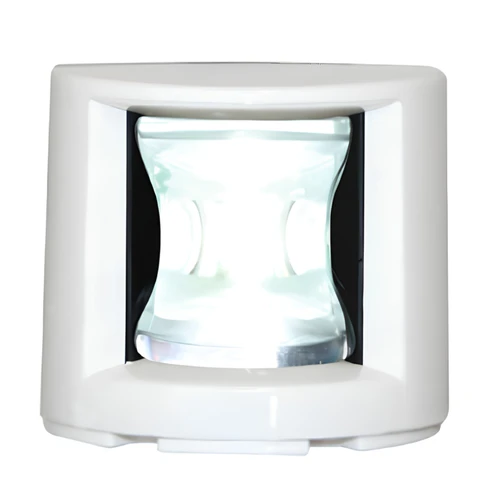

| Stern – 135° | RWB8640 | 38 x 56 x 42mm | 2 NM | 0.5W |
Specifications:
- Brand: Lalizas
- Series: FOS 12 LED Horizontal
- Voltage: 12V DC
- Mounting: Horizontal Mount
- Light Source: LED
- Housing Colours: Black or White
- Port & Starboard Lights: Supplied as a pair
- Bi-Colour and Stern Lights: Sold individually
Vessel compatibility: The Port & Starboard and Bi-Colour lights are specified for boats up to 12m. The supplied specifications state that the Stern Light models are approved for boats up to 20m.
