Product Description
Scanstrut Flip Pro Dual USB C Socket

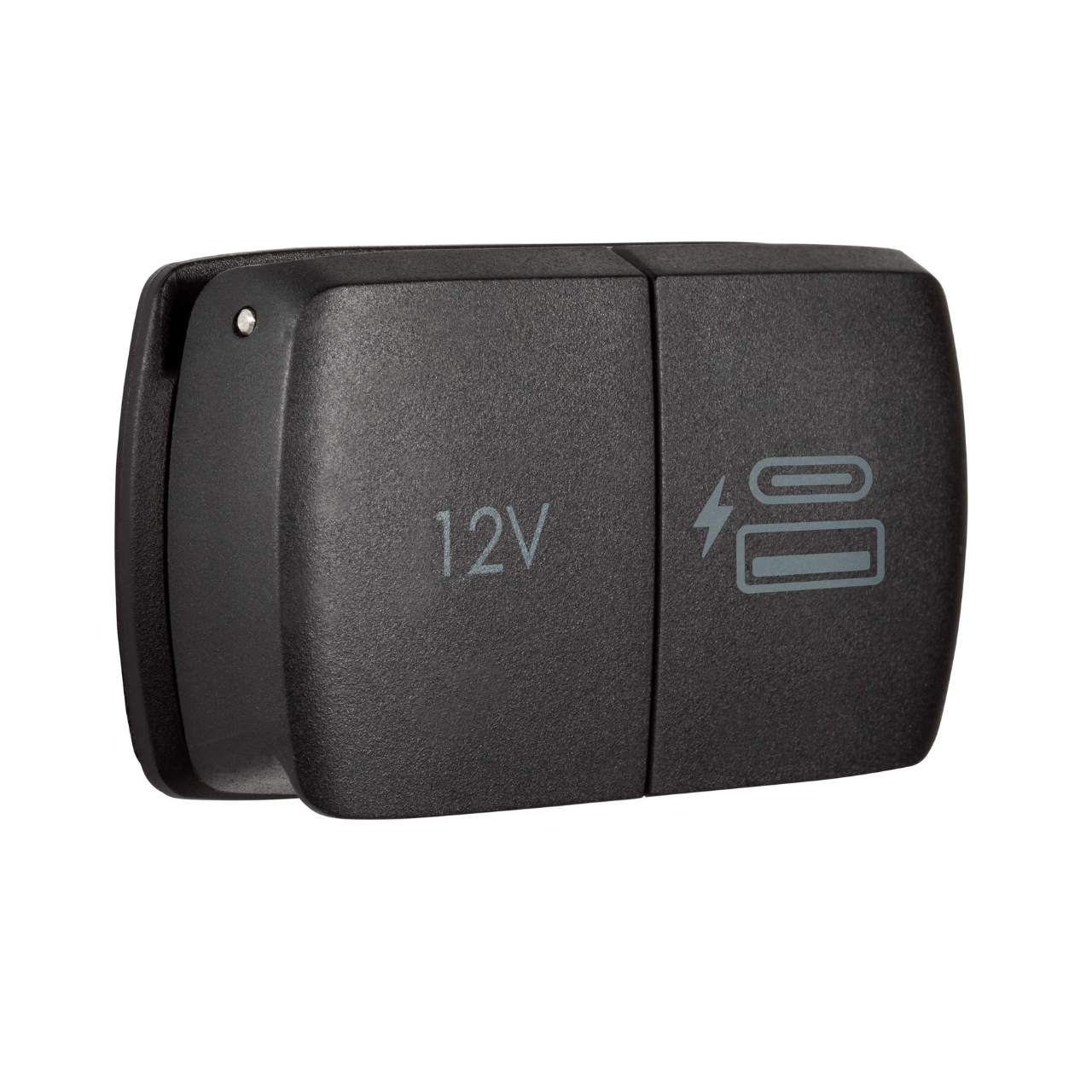

Scanstrut Flip Pro Duo – Dual USB-A & USB-C Waterproof Charger
The Scanstrut Flip Pro Duo delivers reliable, high-speed charging in a compact, marine-grade design built for harsh outdoor environments. Equipped with both USB-A and USB-C outputs, this innovative charging solution supports dual-device fast charging up to 60W and is ideal for phones, tablets, action cams, and more.

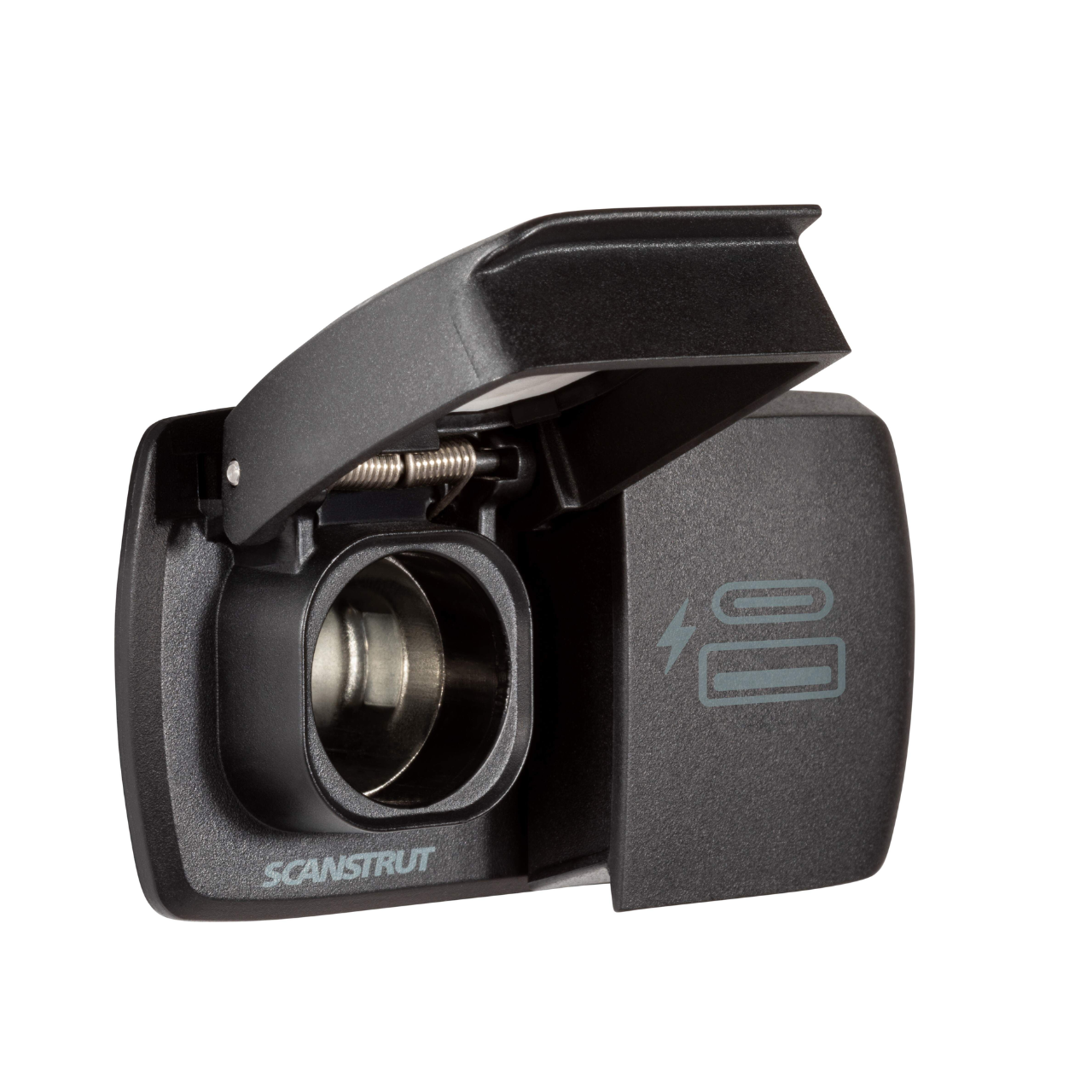

Crafted with premium materials and featuring a 316 stainless steel hinge, UV-resistant body, and IPX4 waterproof rating, Flip Pro Duo is purpose-built for boats, RVs, and outdoor vehicles. Its spring-loaded cap keeps water and dust out when not in use, ensuring lasting protection and performance.
Compact and easy to install, it requires only a standard 32mm (1.25”) hole saw and includes a front-fit bezel kit for a clean finish.
Key Features:
-
Dual USB outputs – USB-C & USB-A
-
Fast charging up to 60W
-
Marine-grade durability with 316 stainless hinge
-
IPX4 waterproof when closed
-
UV resistant body – built for extreme environments
-
Compact design – easy to install in tight spaces
-
Front-fit bezel kit included
USB Output Specs:
-
Input Voltage: 10–32V DC (12/24V systems)
-
Input Current: Max 6A (10A fuse recommended)
USB-C Output:
-
12V system: 5V/3A, 9V/3A, 12V/3A (Max 36W)
-
24V system: 5V–20V @ 3A (Max 60W)
USB-A Output:
-
5V–12V @ 3A (Both 12V & 24V systems)
Standby Draw: 0.01W
Certifications: CE, FCC, ROHS, UKCA, C-Tick, WEE
Installation:
-
Requires 32mm (1.25") hole
-
Easy surface mounting with included bezel
