Water Separating Fuel Filter Assembly – Mercury & OMC Outboard Models
Protect your outboard motor fuel system with the RWB Water Separating Fuel Filter Assembly, a complete marine fuel filtration solution designed to remove water and contaminants from petrol fuel before they reach your engine.
Featuring a high-performance 10 micron spin-on filter element, the RWB fuel filter assembly efficiently separates up to 99% of water and removes up to 98% of small fuel particles, helping improve engine reliability, fuel system performance, and component life.
Designed specifically for 2-stroke and 4-stroke petrol outboard motors, this complete filter assembly includes the filter head, spin-on element, mounting bracket, plugs, and hose tails required for installation.
Available with either a fuel-resistant glass-filled nylon polyamide filter head or a durable black coated die-cast aluminium filter head, with options to suit Mercury and OMC outboard fuel systems.
Important: Suitable for petrol fuel systems only. Not suitable for diesel applications.
Features & Benefits
- Complete water separating fuel filter assembly
- Designed for 2-stroke and 4-stroke outboard motors
- Efficiently separates up to 99% of water from fuel
- Removes up to 98% of small fuel contaminants
- Includes a 10 micron spin-on filter element
- Helps protect carburettors, fuel pumps, injectors, and engine components
- Improves fuel quality and engine reliability
- Available with Mercury or OMC filter element options
- Choice of corrosion-resistant filter head materials
- Integrated mounting bracket for easy installation
- 3/8" NPT ports provide maximum fuel flow
- Supplied complete with plugs and hose tails
- Ideal for recreational, fishing, and commercial marine applications
Variant Options
RWB1207 – Glass Filled Nylon Polyamide Head + Mercury Filter Element
- Fuel-resistant glass-filled nylon polyamide filter head
- Impervious to fuel and corrosion

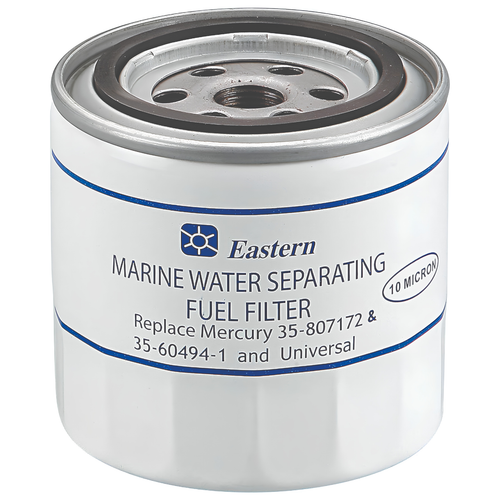

- Mercury type 10 micron spin-on filter element
- Includes:
- 2 x 3/8" NPT threaded plugs
- 2 x 3/8" NPT x 10mm hose barbs
RWB1208 – Die-Cast Aluminium Head + Mercury Filter Element
- Durable gloss black coated die-cast aluminium filter head
- Mercury type 10 micron spin-on filter element
- Corrosion-resistant marine finish
- Includes:
- 2 x 3/8" NPT threaded plugs
- 2 x 3/8" NPT x 10mm hose barbs
RWB1209 – Die-Cast Aluminium Head + OMC Filter Element
- Durable gloss black coated die-cast aluminium filter head
- OMC type 10 micron spin-on filter element
- Designed for OMC outboard fuel systems
- Includes:
- 2 x 3/8" NPT threaded plugs
- 2 x 3/8" NPT x 10mm hose barbs
Specifications
| Specification | Details |
|---|---|
| Product Type | Water Separating Fuel Filter Assembly |
| Fuel Type | Petrol / Gasoline Only |
| Suitable Engines | 2 Stroke & 4 Stroke Outboard Motors |
| Filter Type | Spin-On Cartridge |
| Filtration Rating | 10 Micron |
| Water Separation | Up to 99% |
| Particle Removal | Up to 98% |
| Port Size | 3/8" NPT |
| Hose Barb Size | 10mm |
| Overall Size | 160mm x 110mm x 105mm |
Applications
Suitable for:
- Outboard motors up to 60 HP
- Fishing boats
- Runabouts
- Dinghies and tenders
- Recreational boats
- Commercial marine vessels
- Petrol fuel tank systems
