Easy-Fit Mini Water Separating Fuel Filter System – Complete Kit & Replacement Parts
Keep your outboard engine protected with the RWB Easy-Fit Mini Water Separating Fuel Filter System, a compact, high-performance fuel filtration solution designed for outboard motors up to 70 HP. Available as a complete filter kit, replacement bowl & filter kit, replacement filter elements, or a replacement clear bowl, this range makes servicing your fuel system simple and cost-effective.
Designed for installations where space is limited, the compact filter head measures just 80mm wide (excluding hose barbs) and 77mm deep, making it ideal for aluminium boats and other vessels with confined mounting locations. The durable glass-filled nylon polyamide filter head is impervious to fuel and corrosion, while the clear collection bowl allows for quick visual inspection of water and contaminants and features a convenient screw drain plug for easy servicing.
The 10-micron spin-on filter element uses specialised filter media that sheds water instead of absorbing it, efficiently separating water while removing up to 98% of small fuel particles before they reach your outboard engine.
Suitable for 2-stroke and 4-stroke petrol outboard motors. Not suitable for diesel fuel systems.
Features & Benefits
- Compact water separating fuel filter system
- Suitable for outboard motors up to approximately 70 HP
- Designed for 2-stroke and 4-stroke petrol engines
- Not suitable for diesel fuel
- 10-micron spin-on fuel filter element
- Removes up to 98% of small fuel contaminants and water
- Filter media sheds water instead of absorbing it
- Compact glass-filled nylon polyamide filter head
- Corrosion and fuel resistant construction
- Clear bowl allows easy inspection of water and debris
- Screw drain plug for simple water removal
- Integrated mounting bracket
- Filter capacity up to approximately 180 litres per hour
- Ideal for tight installation spaces
- Replacement bowls and filter elements readily available
Available Options
RWB5365 – Complete Easy-Fit Compact Fuel Filter Kit
Complete water separating fuel filter assembly ready for installation.
Includes:
- Glass-filled nylon polyamide filter head with integrated mounting bracket
- Clear bowl with screw drain plug
- 10-micron standard spin-on filter element
- 2 x 5/16" NPT threaded plugs
- 2 x 5/16" NPT x 8mm hose barbs
- 2 x 5/16" NPT x 10mm hose barbs
RWB5366 – Replacement Clear Bowl & Standard Filter Kit
Replacement service kit including:
- Clear replacement bowl
- Standard 10-micron filter element
Ideal for servicing or replacing damaged filter bowls.

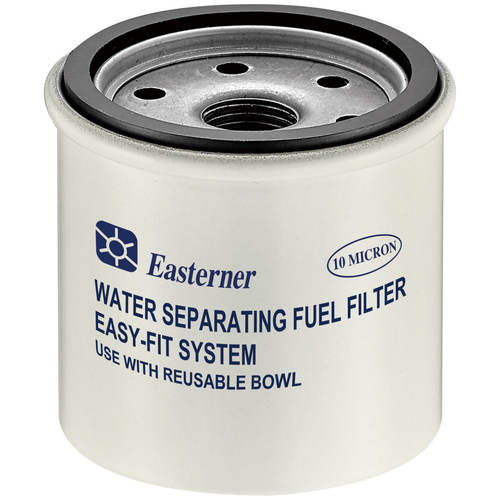

RWB5367 – Replacement Standard Filter Element
Replacement 10-micron standard spin-on filter element.
- Filter cartridge length: 65mm
Suitable for routine maintenance of the Easy-Fit Mini Fuel Filter System.

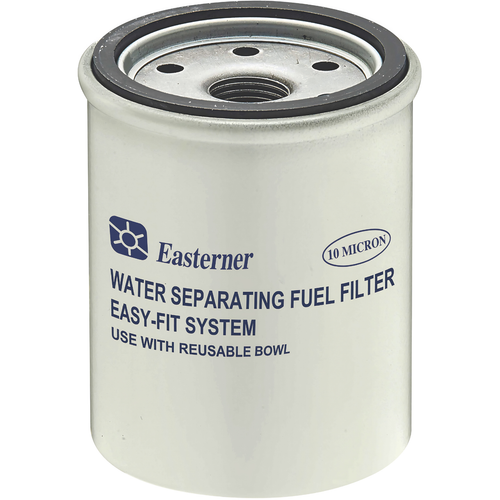

RWB5368 – Replacement Long Filter Element
Replacement 10-micron long spin-on filter element.
- Filter cartridge length: 86mm
- Provides approximately 40% longer filter life
- Higher fuel flow capacity than the standard element
Ideal for users wanting longer service intervals and increased fuel flow.

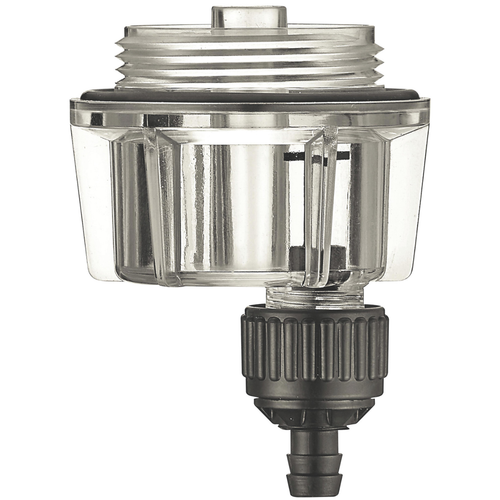

RWB5369 – Replacement Clear Bowl
Replacement clear collection bowl complete with screw drain plug.
Ideal for replacing damaged or worn bowls while retaining the existing filter head and filter element.
Specifications
| Specification | Details |
|---|---|
| Fuel Type | Petrol / Gasoline Only |
| Suitable Engines | 2-Stroke & 4-Stroke Outboards |
| Maximum Engine Size | Approx. 70 HP |
| Filter Rating | 10 Micron |
| Filter Capacity | Approx. 180 L/hr |
| Filter Head Material | Glass-filled nylon polyamide |
| Bowl | Clear with screw drain plug |
| Filter Ports | 4 x 5/16" NPT |
| Included Hose Barbs | 2 x 8mm & 2 x 10mm |
| Filter Head Size | 80mm wide (excluding hose barbs) x 77mm deep |
Capacity up to 180 litres.
Removes 98% of small particles and water from fuel.
4 x 5/16" NPT threaded filter ports.
2 x 5/16" NPT threaded plugs, 2 x 5/16" NPT x 8mm hose barbs & 2 x 5/16" PT x 10mm hose barbs.
