Description
Push-Up Cleat – Mirror Polished AISI 316 Stainless Steel (217mm)
This premium push-up cleat is crafted from mirror-polished AISI 316 stainless steel, delivering exceptional strength, corrosion resistance, and a sleek low-profile finish. Designed to retract flush into the deck when not in use, it reduces trip hazards while maintaining a clean, uncluttered look.
Fitted with mounting studs and a retainer plate, it ensures secure installation and reliable performance under load. With a high breaking load rating, this cleat is ideal for demanding marine mooring applications.
Key Features
- Mirror-polished AISI 316 stainless steel
- Push-up retractable design for flush deck finish
- High-strength construction for heavy-duty use
- Includes mounting studs and retainer plate
- Corrosion-resistant for harsh marine environments
- Clean, low-profile appearance when recessed

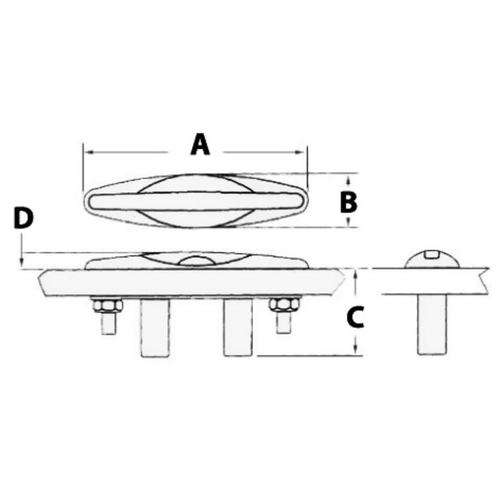

Specifications
- Length (A): 217 mm
- Length (A1): 203 mm
- Width (B): 50 mm
- Overhang (C): 83 mm
- Overhang (D): 15 mm
- Overhang (E): 36 mm
- Stud diameter: 10 mm
- Breaking load: 3094 kg
Applications
- Boat mooring and docking
- Deck cleat installations
- Marine and yacht hardware upgrades
- Flush-mounted deck fittings
Benefits
- Reduces trip hazards with retractable design
- Strong and reliable under heavy loads
- Long-lasting marine-grade stainless steel
- Secure and stable mounting system
- Enhances deck appearance with polished finish
