Description
Viper Pro "S" Series II 1000 Gravity Feed Free Fall Anchor Winch Bundle – 165m UHMWPE Rope
The Viper GRAVITY FEED Pro Series Free Fall Winch (Patent Pending) was developed by Bell Marine after 3 years of research and development and 2 years of field testing, proving itself as a serious contender in the high-performance anchoring market.
This all-stainless steel drum winch uses a mechanical free fall system, eliminating the need for additional electronics, wiring, or solenoids that can fail in harsh marine environments. The result is a reliable, simple, and high-performance anchoring solution trusted by serious boaters.
At the touch of a switch, the drum free spools, allowing the rope, chain, and anchor to drop at high speed so you can hit your GPS mark first time, every time.
Gravity Feed Performance
The mechanical free fall system allows the anchor to deploy significantly faster than conventional drum winches, while also conserving battery power since no power is used during deployment.
A built-in drag mechanism automatically prevents the drum from overspooling once the anchor reaches the seabed, ensuring smooth and controlled operation.
Ideal for deep water anchoring or high-performance fishing setups, the Gravity Feed winch can deploy anchors up to four times faster than many traditional drum winches.
Rope & Chain Bundle
This bundle includes:
-
165m of 5mm Hi-Spec UHMWPE rope
-
10m shock cord section
-
8m of 6mm short link anchor chain
Total length: 183m rope, shock cord, and chain.
Installation & Reliability

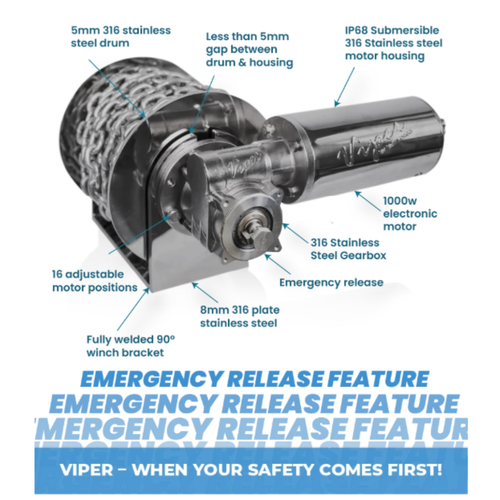

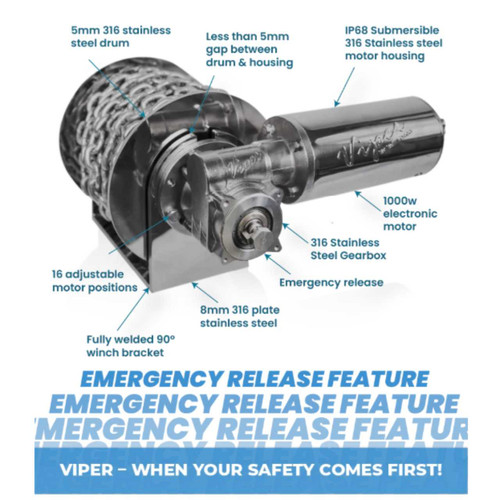

Built from marine-grade stainless steel, the Viper Gravity Feed winch is designed for durability and long-term performance.
The bundle includes everything required for installation, including mounting hardware, stainless sandwich plate, and switch panels.
The motor comes with factory-fitted 3B&S cables, sealed and leak tested to an IP68 waterproof rating. Simply connect your wiring loom using the marine-grade tinned joiners provided.
Backed by a 5-Year Viper Performance Warranty, this winch is built for serious anchoring performance.
What’s Included
-
30072-S Viper Pro 1000 “GRAVITY FEED” Electric Drum Anchor Winch
-
30059 165m of 5mm UHMWPE rope spliced to 8m of 6mm chain
-
30001 Small Viper Pro Series Anchor Swivel
-
30009 Small Viper Deluxe Anchor Roller
-
30020 200amp reversing solenoid
-
90109 Viper Elite Series Stainless Steel Up/Down Switches
-
30046 100amp flush mount circuit breaker with rubber seal
