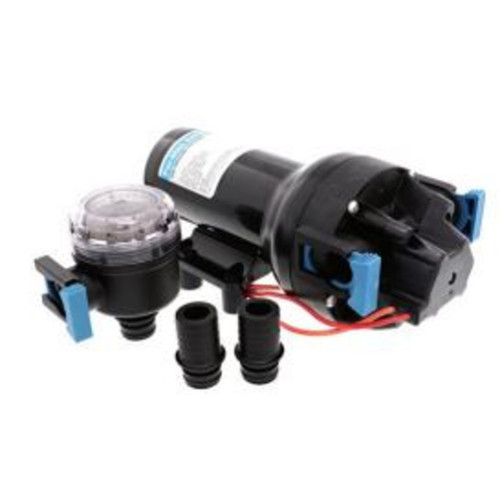

Jabsco Par-Max 5.0 Freshwater Pressure Pump - P501J-115S-3A
The heavy duty Par-Max 5.0 freshwater pressure pumps offers robust construction and high performance. The new modern design pump have a 5 chamber diaphragm with reinforced polypropylene pump head and offer pressure up to 40PSI.
The models include a heavy duty wider diameter motor with a powder coated shell, cast aluminum end bells and lower housing - to improve pressure capability and offer longer life and exceptional performance. They are the ideal robust heavy duty pump for providing freshwater automatically to up to 4 x 20mm outlets on pleasure craft up to approx. the 15 metres (50 Ft) range.
The heavy duty 5 chamber automatic pressure pump gives flow up to 5 US Gallons per minute (19 litres per minute) and pressure up to 60 PSI and serves up to 4 x 20mm outlets onboard including galley, shower and additional faucets. The Par-Max 5.0 HD gives very smooth water flow even at low demand due to it’s built-in pulsation dampening by-pass valve which controls unwanted cycling and reduces noise.
- Fully automatic operation with integrated sealed pressure switch
- Pressure switch 40PSI cut off
- High capacity flow up to 19litres 5 US gallons per minute
- Serves up to 4 x 20mm outlets on board simultaneously
- Modern 5 chamber design gives ultra smooth f ow and quiet operation
- Built-in internal by-pass lowers water pulsation
- Self primes to 2.4metres (8 feet)
- Can be installed vertically or horizontally
- Can be run dry for short periods without damage
- Powerful heavy duty ignition protected motor with thermal protection TCO
- Vibration dampening base plate & feet for quiet efficient operation
- Only available in 12volt in either 40PSI or 60PSI versions
- 3 year warranty
Includes:
- 40 mesh plug-in universal inlet strainer
- Corrosion resistant motor
- Soft rubber vibration dampening mounts
- 4 x quick connect plug-in hose ports included - 2 x 12mm & 2 x 20mm barbed for hose
Spare Parts Available:
J21-114 Replacement plug-In 40 mesh inlet strainer Jabsco 46400-9500
J25-171 Replacement port clips (pair) Jabsco 30647-1000
J25-209 Replacement 40 PSI pressure switch kit Jabsco 16470-0040
J25-210 Replacement 60 PSI pressure switch kit Jabsco 16470-0060
J25-207 Check valve & housing assembly kit Jabsco 18753-8001
J25-206 Diaphragm & drive assembly kit Jabsco 18753-8000
