Product Description
Jabsco HotShot 4.0 Deckwash Pump Kit - Q401J-118N-3A
These new modern design pumps now have a 4 chamber quad diaphragm and heavy duty wider diameter motor with a powder coated shell, and cast aluminium end bells and lower housing - to improve pressure capability and offer longer life and exceptional performance.
The Jabsco Hotshot 4.0 HD automatic deck washdown kit supplies a constant saltwater flow with quiet operation. High pressure 60 PSI jet is ideal for removing mud from anchoring hardware and blasting decks and fishing platforms clean with ease.
- Up to 15.1 litre (4.0 GPM) per minute flow rate
- 60 PSI high pressure cut out
- The motor is ignition protected & has thermal overload protection
- Self priming to 2.4 metres (8 ft)
- Diaphragm design can run dry for extended periods
- Spray resistant motor coating IPX6 - NOT waterproof A Sealed pressure switch extends pump life

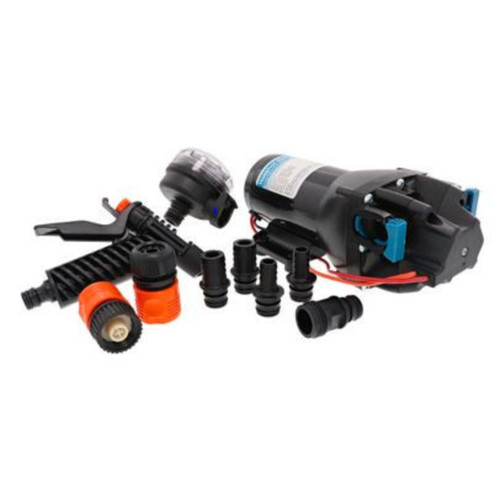

Includes:

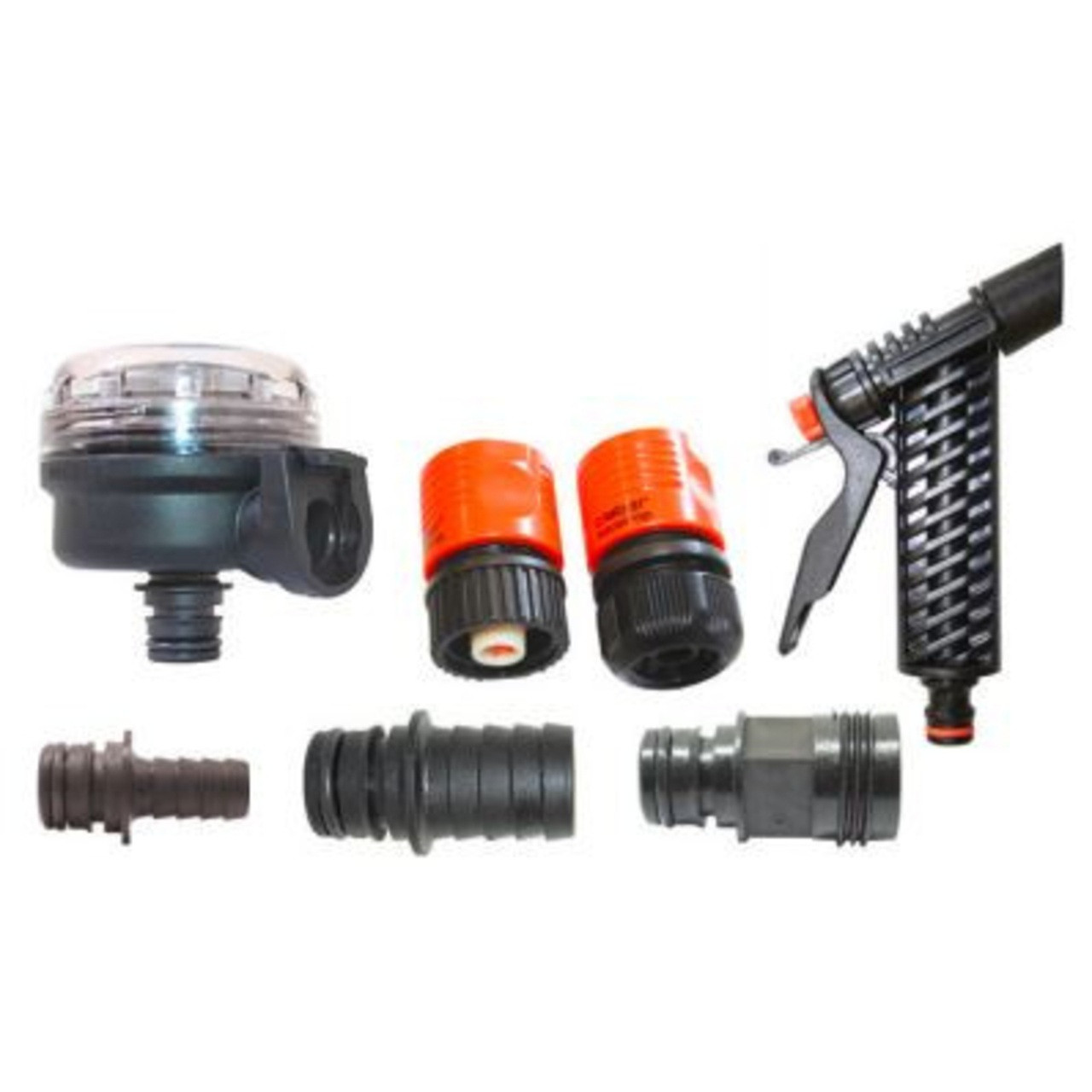

- Pump
- Plug-in inlet filter
- Hose trigger nozzle
- Standard Australian garden hose connector
- USA GHT connector to suit HoseCoil hoses
- 2 x 12mm & 2 x 20mm straight hose barb ports
- 1 x snap-in port for direct connection to HoseCoil USA threaded hose
Spare Parts Available:
J21-114 Replacement plug-In 40 mesh inlet strainer Jabsco 46400-9500
J25-171 Replacement port clips (pair) Jabsco 30647-1000
J25-210 Replacement 60 PSI pressure switch kit Jabsco 16470-0060
J25-212 Check valve & housing assembly kit Jabsco 18753-0731
J25-213 Diaphragm & drive assembly kit Jabsco 18753-0730
J27-155 Replacement 7.5Mtr (25 Ft) blue coiled hose Jabsco 91004097
