Product Description
Rule 1100 GPH Bilge Pump 12v
The Next Generation compact, high capacity 1100 GPH submersible electric bilge pump. Totally submersible, which is water cooled and TCO (thermal cut-out) protected motor, stainless steel shaft and easy to clean/replace snap-on strainer base.
This pump is extremely energy efficient, draining low current and offer high capacity output all within a very compact housing, designed to fit into the smallest available space.
This pump is non-automatic, meaning it requires a Rule float switch to operate automatically.
3 year limited warranty.
- Fully submersible 1100 US gallons per hour - 69 litres per minute
- High flow due to optimized impeller to provide greater flow at the same amperage as previous model
- High efficiency, low amp draw ignition protected motor includes true electromagnetic suppression (EMC)
- 16 gauge tin coated copper electrical wiring with silicon infused water blocking feature to stop water wicking down inside the wiring
- Built-in thermal cut-out in the motor provides additional protection for pump & vessel
- Back flow prevention, the pump now includes a removable check valve in the discharge nozzle which reduces the amount of any water draining back from the pump discharge hose into the bilge. Note - Using the check valve will reduce output flow

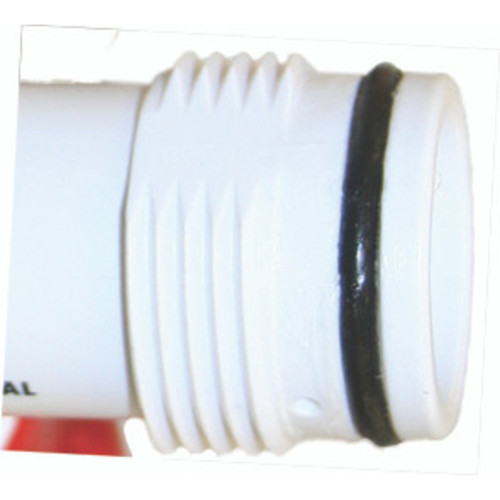

- Threaded discharge port allows for easier installation and maintenance, hose port is included in each pump
- Hidden air vents in the pump prevents air locking in challenging plumbing installations and helps with the check valve operation
- Compact size - 112mm height x 74mm width x 64mm depth - not including discharge
- 3.7 amp draw @ 12v DC
- Threaded hose outlet suits 25mm (1") hose and 28mm (11/8") hose.
Spare Parts Available:
SP856 Replacement Strainer base to suit new 800 & 1100 GPH pumps

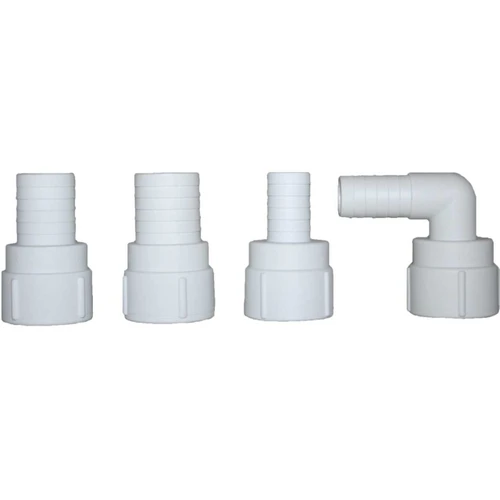

SP845 Optional straight threaded port suits 25mm (1") hose
SP846 Optional 90 degree threaded port suits 25mm (1") hose
SP847 Optional straight threaded port suits 28mm (11/8") hose
SP848 Optional 90 degree threaded port suits 28mm (11/8") hose
SP853 Replacement check valve 25mm (1")
SP854 Replacement check valve 28mm (11/8")
