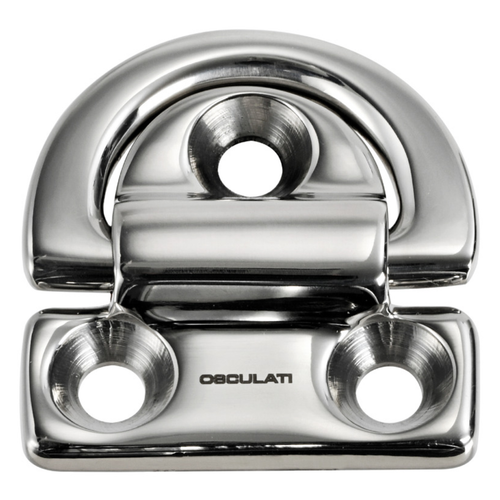

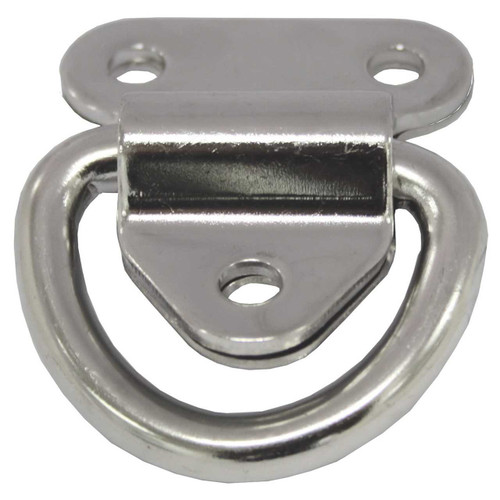

Folding Pad Eye – 46 × 46 mm, 6 mm Ring, 2,200 kg Breaking Load
The Folding Pad Eye is a high-strength, mirror-polished pad eye designed for secure attachment points on boats, trailers, or other rigging applications. Featuring a full forged eye for maximum mechanical strength and fitted with anti-vibration rubber, it ensures durability and reduces noise or wear under load.
With a breaking load of 2,200 kg, this pad eye provides a reliable connection point, ideal for high-stress applications. Its dimensions are compatible with standard Wichard pad eyes, making replacement or retrofit easy.

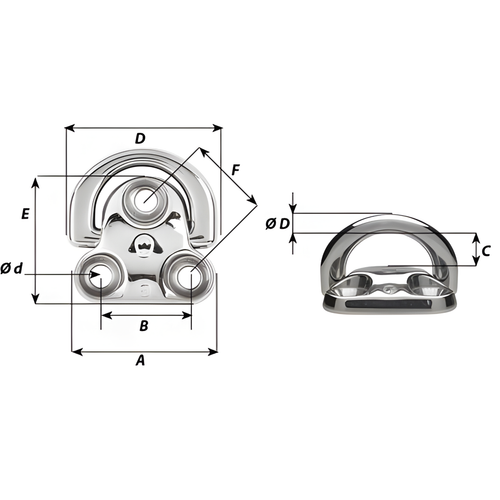

Specifications
| Specification | Value |
|---|---|
| Type | Single, Small |
| Overall Height (A) | 47 mm |
| Centre Distance (B) | 27 mm |
| Base Width (C) | 45 mm |
| Base Height (D) | 25 mm |
| Ring Diameter | 6 mm |
| Screw Diameter | 6 mm |
| Breaking Load | 2,200 kg |
Features
-
Mirror-polished stainless steel for corrosion resistance and aesthetic appeal
-
Full forged eye for maximum mechanical strength
-
Anti-vibration rubber reduces wear and noise
-
Compatible with Wichard-style pad eyes (same centre distance)
-
Supplied in a recyclable display package showing breaking load
Applications
-
Marine attachment points for ropes, lines, or shackles
-
Trailer tie-downs and load securing
-
General-purpose heavy-duty attachment on boats or industrial applications
-
Replacement for Wichard small pad eyes
