Product Description
Scanstrut Socket TILE 12/24v

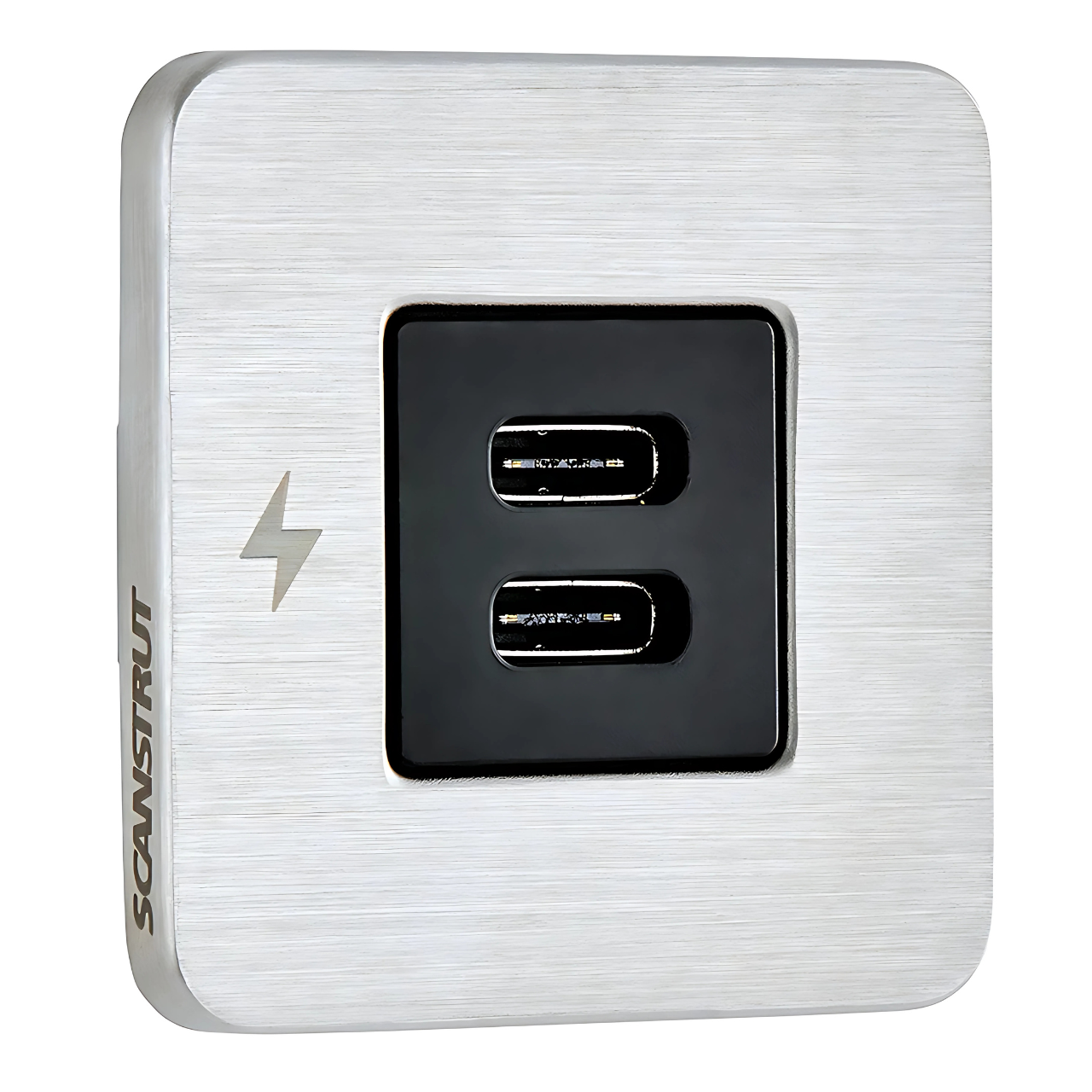

TILE USB-C Interior Charging Socket – 12/24V – Stainless Steel Bezel
The TILE USB-C Interior Charging Socket is a sleek, high-performance charging solution designed for modern marine interiors. With its ultra-low-profile, stainless-steel bezel, and compact 40mm footprint, it seamlessly integrates into luxury boat cabins and navigation stations.
Engineered for both 12V and 24V systems, this interior charger delivers up to 60W of USB-C fast charging power, making it suitable for everything from phones to tablets to laptops. Featuring front-mount installation and conformal coated electronics for durability, it offers both style and performance for your vessel.
⚠️ Interior use only – not for wet environments.
Key Features:
-
USB-C output:
-
60W max on 24V system
-
36W max on 12V system
-
-
Powerful fast charge: Ideal for laptops, phones, and tablets
-
Compact size: 40mm diameter, fits 29mm hole
-
Ultra-low profile front fit
-
Material: 316 stainless steel bezel
-
Input voltage: 10–32V DC (12/24V systems)
-
Moisture protected: Conformal coated electronics
-
Certified: CE, FCC, UKCA, C-Tick, ROHS, WEEE
Important Notes:
-
Charges 2 devices at once
-
Use the device’s original cable for best performance
-
24V system required to achieve full 60W output for laptops
-
USB-A port version also available
Specifications:
-
Input current (max): 6A (recommend 10A fuse)
-
Output (Type C):
-
12V: 5V/3A, 9V/3A, 12V/3A
-
24V: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A
-
-
Standby power: 0.01W
