Scanstrut ATMOS 12V Integrated Air Station
*If specific specs and dimensions are required call us at 07 5502 8484
The Scanstrut ATMOS 12V Integrated Air Station is a permanently installed onboard inflation system designed to make inflating and deflating your watersports equipment fast, effortless, and convenient. Perfect for SUPs, inflatable kayaks, tenders, towables, platforms, and foils, ATMOS provides powerful two-stage inflation in a compact, waterproof design that integrates seamlessly into your boat.
Featuring an intelligent two-stage brushless pump, ATMOS automatically switches from high-volume, low-pressure (HVLP) to high-pressure, low-volume (HPLV) operation at 1.1 PSI, delivering rapid inflation while achieving pressures of up to 20 PSI (1.37 Bar).
Built using Scanstrut's proven outdoor technology, ATMOS is engineered to withstand harsh marine environments. The integrated LCD display provides simple operation with real-time pressure settings and a live battery voltage readout, while soft-touch TPE buttons remain easy to use even with wet hands.
Its compact, shallow design allows installation into consoles, seating, transoms, or swim platforms, ensuring onboard air is always within easy reach.
Features
- Permanently installed 12V onboard air station
- Inflates and deflates SUPs, tenders, kayaks, towables, platforms and more
- Intelligent two-stage brushless pump system
- Automatically switches from HVLP to HPLV at 1.1 PSI
- Maximum pressure: 20 PSI (1.37 Bar)
- Inflate and deflate functionality
- Waterproof design for marine environments
- Soft-touch non-slip TPE control buttons
- Bright LCD display with live battery voltage monitoring
- Compact, shallow installation depth
- Includes 3.6m (12ft) air hose

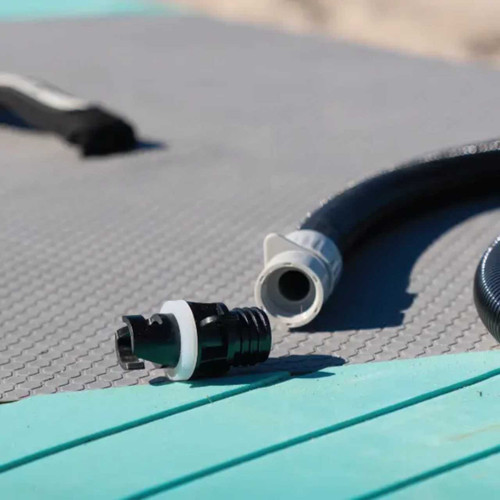

- Supplied with 6 valve adapters:
- Boston Valve
- C7 Valve
- H3/HR Valve
- Pinch Valves
- 805 Valve
- Heavy-duty black UV protective sun cover included
- White replacement cover available separately (SC-AOB-A2-SC1)
- Foam mounting gasket included
- Simple installation using 10 self-tapping screws
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC-AOB-A2 |
| Input Voltage | 12V DC (11.5–14V) |
| Maximum Current Draw | 12A (140W) |
| Maximum Pressure | 20 PSI (1.37 Bar) |
| Stage 1 Airflow (0–1 PSI) | 350 LPM (12.3 CFM) |
| Stage 2 Airflow (1–20 PSI) | 70 LPM (2.5 CFM) |
| Standby Power Draw | 0.1W Max |
| Operating Temperature | -20°C to +50°C |
| Hose Length | 3.6m (12ft) |
| Power Cable Length | 500mm |
| Wire Size | 2.0mm² (14 AWG) |
| Minimum Installation Depth | 110mm |
| Installation Angle | +10° to -30° from vertical |
Typical Inflation Times
| Item | Inflate | Deflate |
|---|---|---|
| 10ft SUP | 20 PSI in approximately 6–8 minutes | Approximately 1 minute |
| Towable | 1.5 PSI in approximately 3 minutes | Approximately 1 minute |
| 4m Inflatable Platform | 5 PSI in approximately 16 minutes | Approximately 1 minute |
Applications
Suitable for inflating and deflating:
- Stand Up Paddleboards (SUPs)
- Inflatable kayaks
- Inflatable tenders
- Towable tubes
- Inflatable platforms
- Foils
- Water toys
- Other inflatable equipment using compatible valve fittings
The Scanstrut ATMOS Integrated Air Station delivers professional-grade onboard inflation with the convenience of a permanently installed system, allowing you to spend less time setting up and more time enjoying the water.
