Product Description

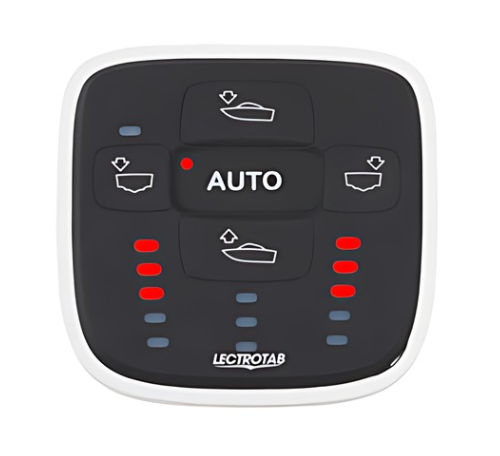

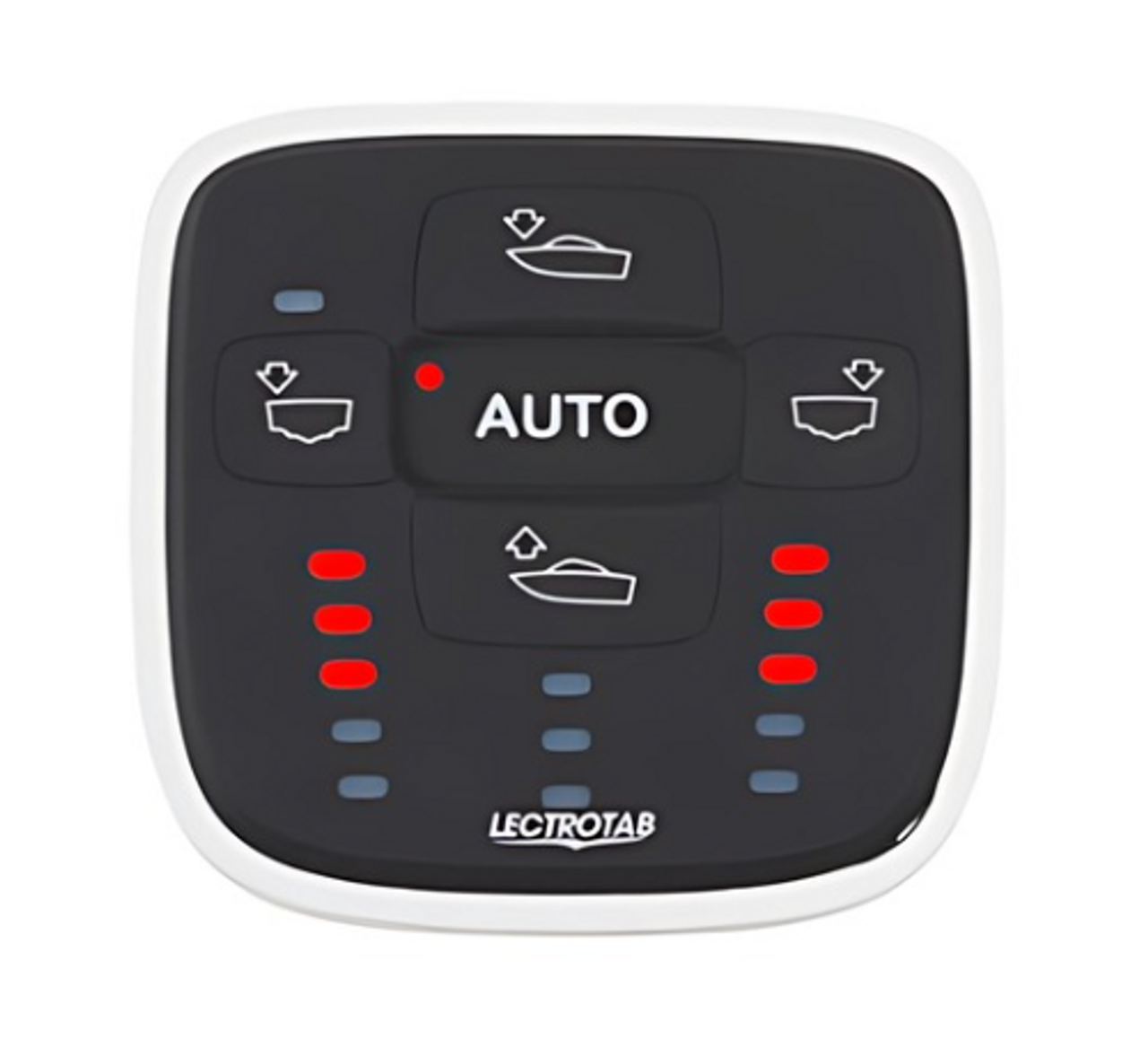

Lectrotab Automatic Leveling Control – Model ALC-1 (Black, 1 Station)
The Lectrotab ALC-1 Automatic Leveling Control is an advanced trim tab controller designed to maintain a level and comfortable ride by automatically adjusting for roll (side-to-side) and pitch (fore-to-aft) as conditions change. Featuring a sleek black display, the ALC-1 is ideal for single-station setups and supports one actuator per trim tab plate.
Built with an internal GPS, this unit requires no external antenna or network and is fully sealed (IP68 waterproof) and UV-protected for reliable marine performance. The system is compatible with both 12V and 24V power systems and includes LED tab position indicators that automatically adjust brightness based on ambient light.
Specifications:
-
Model Number: ALC-1
-
Display Colour: Black
-
Number of Stations: 1
-
Actuators per Tab Plate: 1
-
Overall Width: 3.15” (80 mm)
-
Overall Height/Thickness: 3.0” (77 mm) / 0.437” (11 mm)
-
Mounting Cutout Diameter: 2” (50 mm)
-
DC Voltage: 12V / 24V
-
Fuse Size (1 actuator per tab):
• 12VDC = 15A
• 24VDC = 10A -
Fuse Size (2 actuators per tab): Not applicable
Key Features:
-
Microprocessor-controlled automatic leveling
-
Adjusts trim tabs to maintain level ride in real time
-
Integrated GPS—no external antenna required
-
Auto-dimming LED indicators
-
Waterproof (IP68) and UV resistant
-
Auto retraction when off-plane (with optional key switch)
-
Prevents adjustments during turns
-
Ideal for planing and semi-displacement hulls 20ft+
-
Direct actuator connection (no external power module required)
-
2-Year Warranty | CE Approved
