Product Description

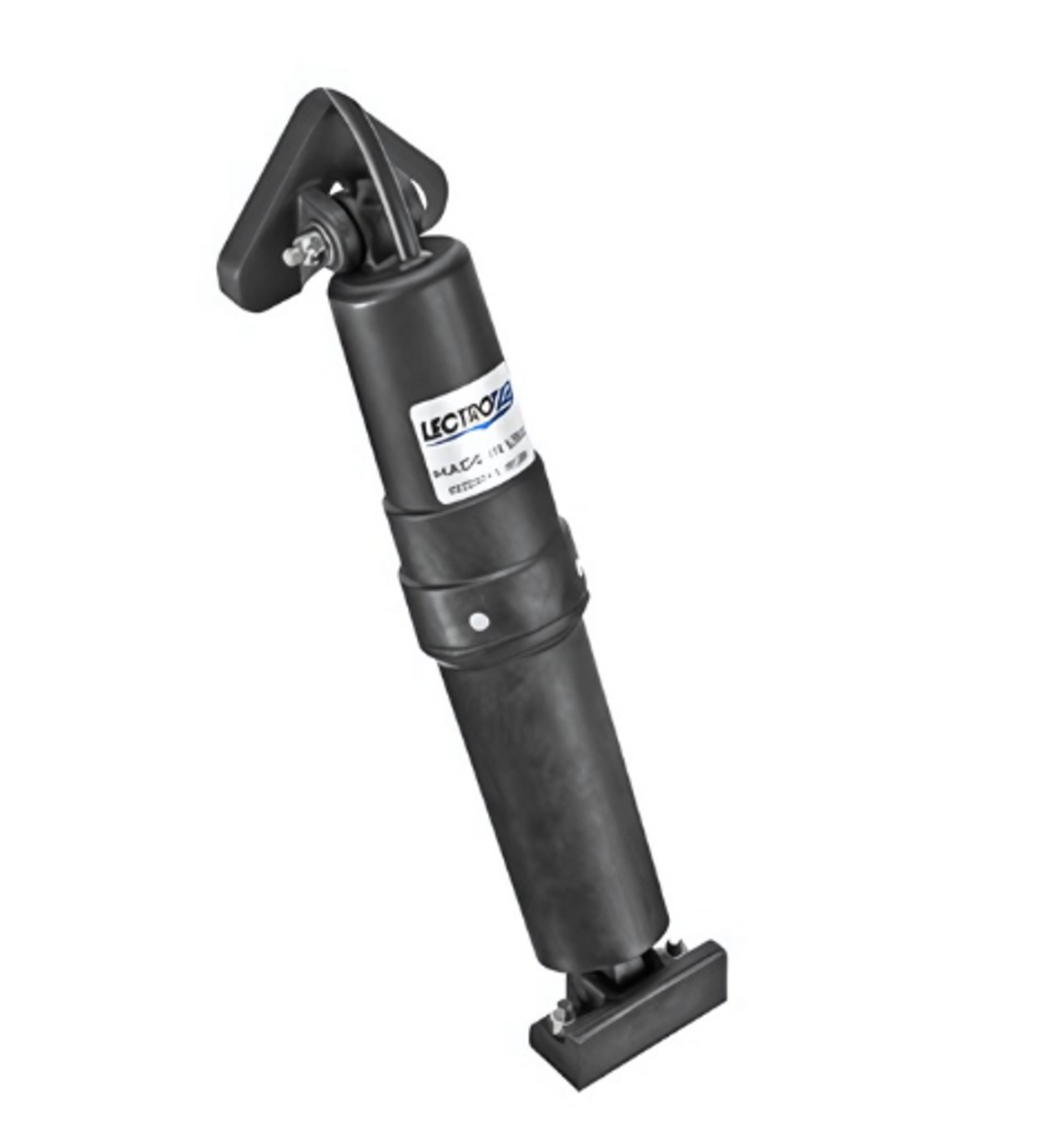

Lectrotab 12V DC Trim Tab Actuator – 2 1/4” Stroke
This Lectrotab Standard Actuator delivers powerful, quiet, and maintenance-free trim tab control with a 2 1/4” stroke. Designed for reliable performance in marine environments, it features a sealed, non-metallic housing that resists corrosion and eliminates the risk of oil leaks—unlike hydraulic systems.
With a quick 8-second stroke time and a total vertical mount distance of 11 1/4", it provides up to 15° of trim tab deflection when mounted using the standard Lectrotab point. It’s also a direct, drop-in replacement for Bennett long ram actuators, offering seamless upgrade compatibility.
Key Features:
-
Voltage: 12V DC
-
Stroke length: 2 1/4"
-
11 1/4" vertical mount distance required
-
15° deflection with standard mounting
-
Quiet, sealed, and corrosion-free design
-
No hydraulic fluid – zero maintenance
-
Self-contained for easy installation
-
Drop-in replacement for Bennett long ram actuators
