Product Description
Buss Bar 6 Terminal

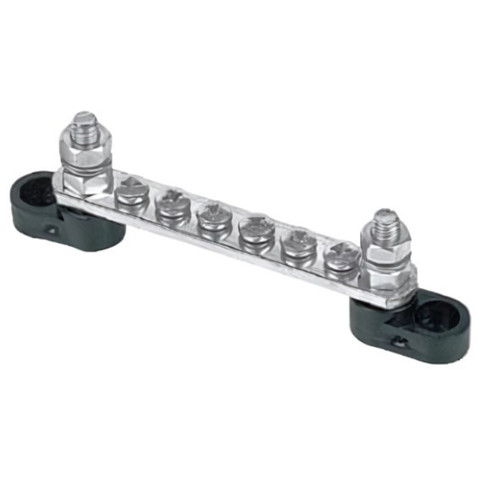

BEP BB-6W-2S Bus Bar – 6 Way with 2 Studs & Cover (117 x 15 x 29mm)
The BEP BB-6W-2S Bus Bar is a compact and reliable 6-way power distribution block designed for marine and RV electrical systems. Built with tin-plated brass terminals on an insulated mounting base, this bus bar supports secure and corrosion-resistant current distribution.
Equipped with 2 x 1/4” (6mm) input studs and 6 screw terminals, it ensures efficient wiring layouts for DC circuits. The included clear cover complies with ABYC standards and features polarity ID for safe, compliant installations.
Key Features:
-
6 Terminal Screws + 2 Input Studs (1/4" / 6mm)
-
Tin-Plated Brass Bar for superior conductivity and corrosion resistance
-
Insulated Base with recessed mounting holes to prevent shorts
-
Includes Cover – ABYC-compliant with polarity ID
-
Mounting Hardware Included – 4mm stainless steel screws with shakeproof washers
Dimensions:
-
Overall Size: 117mm x 15mm x 29mm (4.6" x 0.6" x 1.1")
Applications:
-
DC and AC distribution in marine, RV, off-grid, and solar setups
-
Supplied as standard with all BEP AC & DC control panels
