Osculati

Polished Push-Up Cleat | 316 Stainless

(No reviews yet) Write a Review
$84.60 - $175.75
SKU:
40.136.01-V
Adding to cart… The item has been added

Description

Push-Up Cleats – Mirror-Polished 316 Stainless Steel

These Osculati push-up cleats are manufactured from mirror-polished AISI 316 stainless steel for a sleek finish and excellent corrosion resistance in marine environments. Designed to retract when not in use, they provide a neat, low-profile deck fitting. Each cleat is supplied with mounting studs and a retainer plate.

Key Features

  • Mirror-polished AISI 316 stainless steel construction

  • Push-up design for a low-profile finish when not in use

  • Supplied with mounting studs and retainer plate

  • Suitable for marine deck installations

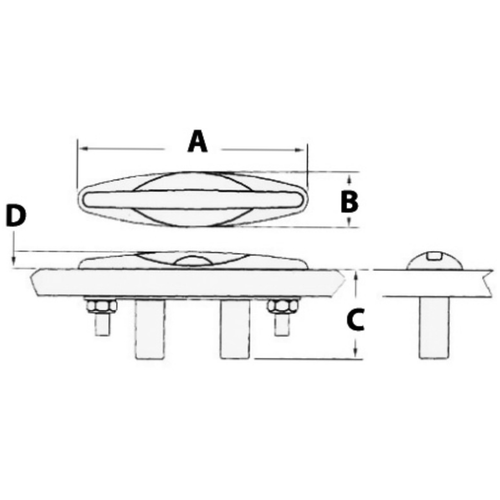

Specifications

40.136.01 – 164mm

  • Length (A): 164mm

  • Length (A1): 150mm

  • Width (B): 38mm

  • Overhang (D): 12mm

  • Overhang (C): 60mm

  • Overhang (E): 23mm

  • Stud diameter: 10mm

  • Breaking load: 2,784kg

40.136.02 – 217mm

  • Length (A): 217mm

  • Length (A1): 203mm

  • Width (B): 50mm

  • Overhang (D): 15mm

  • Overhang (C): 83mm

  • Overhang (E): 36mm

  • Stud diameter: 10mm

  • Breaking load: 3,094kg
