Description
Foldable Hot-Dip Galvanized Anchor Range | AP Series
The AP Series Foldable Anchors are high-performance, space-saving anchoring solutions designed for a wide range of marine applications including tenders, kayaks, inflatables, and small to medium vessels. Built from hot-dip galvanized (HDG) steel or iron for superior corrosion resistance, each anchor features a patented three-flat-element folding design that delivers strong holding power while remaining compact and easy to store.
Engineered for convenience and reliability, these anchors feature ultra-flat folding construction for minimal storage space and tool-free assembly for fast deployment. Each model is suitable as a primary, secondary, or emergency anchor depending on vessel size and conditions.
Available Variants
- 01.161.01 – 1.5kg Foldable Anchor (HDG Steel)
- 01.161.05 – 5kg Foldable Anchor (HDG Steel)
- 01.161.08 – 7.8kg Foldable Anchor (HDG Iron)
Key Features
- Patented three-flat-element folding anchor design
- Hot-dip galvanized (HDG) corrosion-resistant construction
- Ultra-flat profile for compact storage
- Tool-free assembly and quick deployment
- High holding power for its weight class
- Suitable as primary, secondary, or emergency anchor
- Ideal for boats, tenders, inflatables, kayaks, and small vessels
- Durable marine-grade construction for harsh environments
Specifications

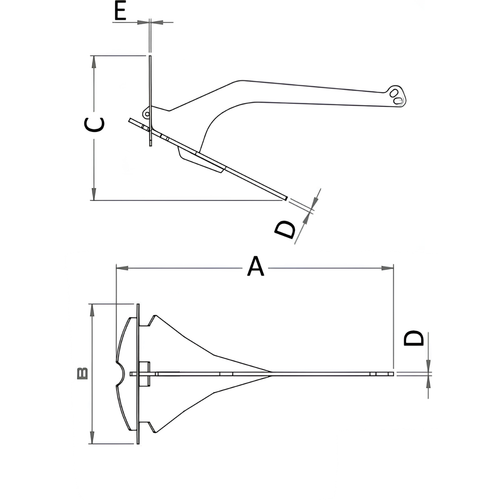

| Specs: | 1.5kg (01.161.01) | 5kg (01.161.05) | 7.8kg (01.161.08) |
|---|---|---|---|
| Model | AP1GZ | AP5GZ | AP8GZ |
| Material | HDG Steel | HDG Steel | HDG Iron |
| Weight | 1.5kg | 5kg | 7.8kg |
| Length (A) | 412mm | 595mm | 664mm |
| Width (B) | 199mm | 291mm | 325mm |
| Width (C) | 206mm | 301mm | 335mm |
| Thickness (D) | 5mm | 8mm | 10mm |
| Pin Diameter (E) | 3mm | 4mm | 5mm |
| Stowage Bag | 01.163.01 (48×24cm) | 01.163.02 (70×31cm) | 01.163.02 (70×31cm) |
Ideal Applications
- Tenders and dinghies
- Kayaks and inflatables
- Small boats and fishing vessels
- Emergency anchoring systems
- Secondary anchor setups
- Coastal and inland waterways
Important Note
Compatible stowage bags are available separately and are not supplied with the anchors. Please contact for sizing assistance or compatibility confirmation at 07 5502 8484.
